FEATURE LIST
100 onboard high-quality digital effects, including distortion, overdrive, EQ, compression, delay, reverb, flanging, phasing, and chorusing
5 new amp emulators plus 5 cabinet emulators
100 custom-designed factory patches
Free ZOOM Guitar Lab Mac/Windows software allows downloading of additional effects and patches
Use up to 9 effects simultaneously, chained together in any order

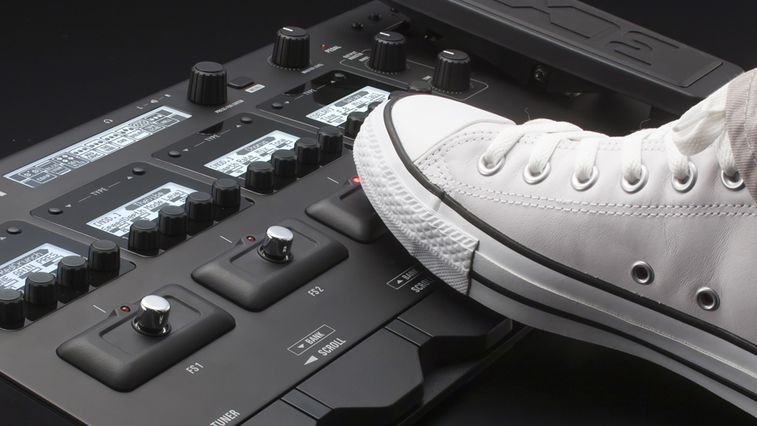

4 stompbox switches allow effects to instantly be brought in and out
Built-in expression pedal for real-time control over volume, tone, or selected effect parameters
High output booster circuit for added volume and overdrive
Intuitive user interface
200 memory locations for storage of factory and/or user-created patches
4 independent editing displays, plus large overview display
Auto Save function for automatic saving of all patch parameters
Onboard chromatic tuner with dedicated footswitch supports all standard guitar tunings, including open and drop tunings
Tuner range of 435 - 445 Hz
Stereo/mono Looper allows recording of up to 80 seconds of phrase recording
68 built-in rhythm patterns that can be used in conjunction with the Looper
Tap Tempo with dedicated footswitch
Input jack accepts standard guitar cable
Auxiliary stereo input jack for connection of smartphones and music players
Dual output jacks for connection to guitar amps and mono or stereo PA systems
Dedicated stereo headphone output
Control input for external footpedal
USB port for firmware updating and patch/effects downloading
Use as a USB audio interface for Mac/Windows computers, with direct zero-latency monitoring of input signal
Included AC adapter

SPECS
General
EFFECT TYPES: 159 (127 DSP effects, 16 amp emulators, 16 cabinet emulators)
NUMBER OF SIMULTANEOUS EFFECTS: 9
NUMBER OF USER BANKS/PATCHES: 200
SAMPLING FREQUENCY: 44.1 kHz
A/D CONVERSION: 24-bit with 128x oversampling
D/A CONVERSION: 24-bit with 128x oversampling
SIGNAL PROCESSING: 32-bit
FREQUENCY CHARACTERISTICS: 20 – 20 kHz +1 dB, -3 dB (10 kΩ load)
DISPLAY: 128 x 32 dot-matrix LCD (x4) 256 x 32 dot-matrix LCD

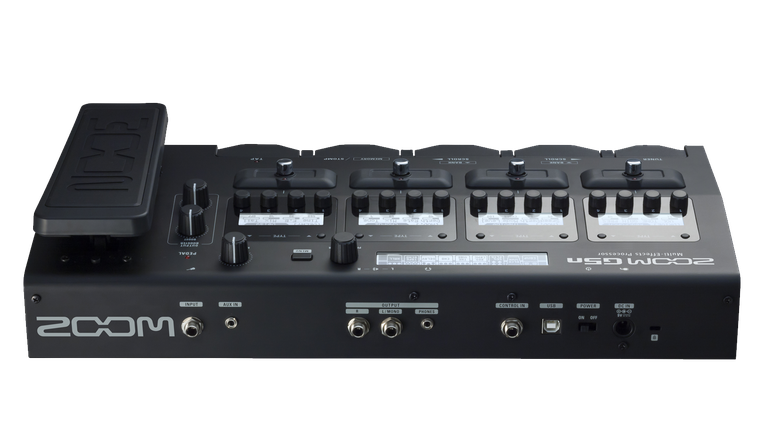

INPUTS
INPUT: Standard monaural phone jack Rated input level: -20 dBu* Input impedance(line): 470 kΩ
AUX IN: Stereo mini jack Rated input level: -10 dBu* Input impedance(line) : 10 kΩ
OUTPUTS
L/R: Standard monaural phone jack x 2
L/R MAXIMUM OUTPUT LEVEL: Line +5 dBu* (with output load impedance of 10 kΩ or more)
PHONES (HEADPHONES): Stereo mini jack
PHONES MAXIMUM OUTPUT LEVEL: 20 mW + 20 mW (into 32 Ω load)
Additional Specifications
EQUIVALENT INPUT NOISE: -119 dBu* * 0dBu=0.775 Vrms
NOISE FLOOR (RESIDUAL NOISE): -101 dBm
CONTROL INPUT: ZOOM FP01/FP02 (not included)
POWER: AC adapter DC9V (center minus plug), 500 mA (ZOOM AD-16)
USB: USB Audio
DIMENSIONS: 225 mm (D) X 454 mm (W) X 75 mm (H)
WEIGHT: 3.4 kg
