Features

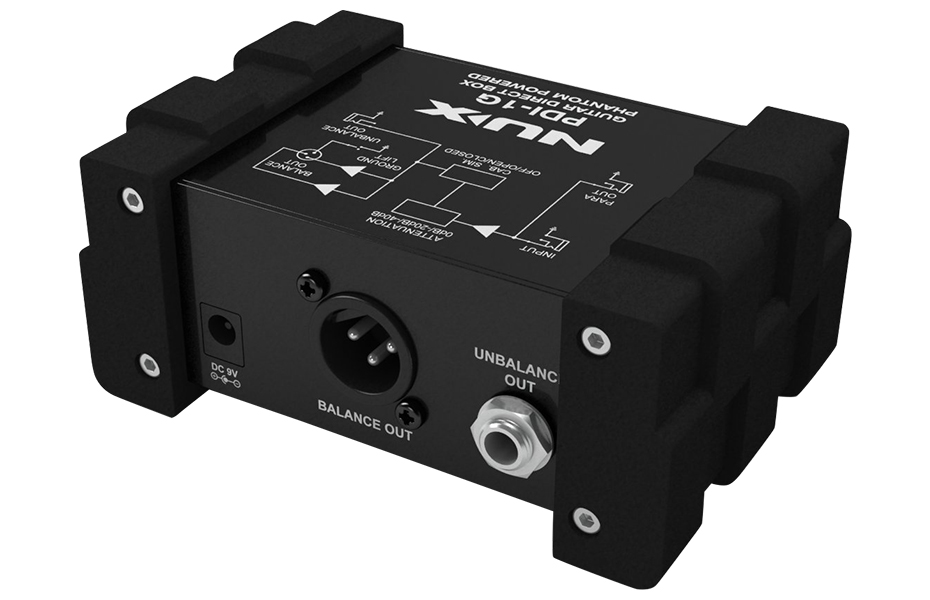

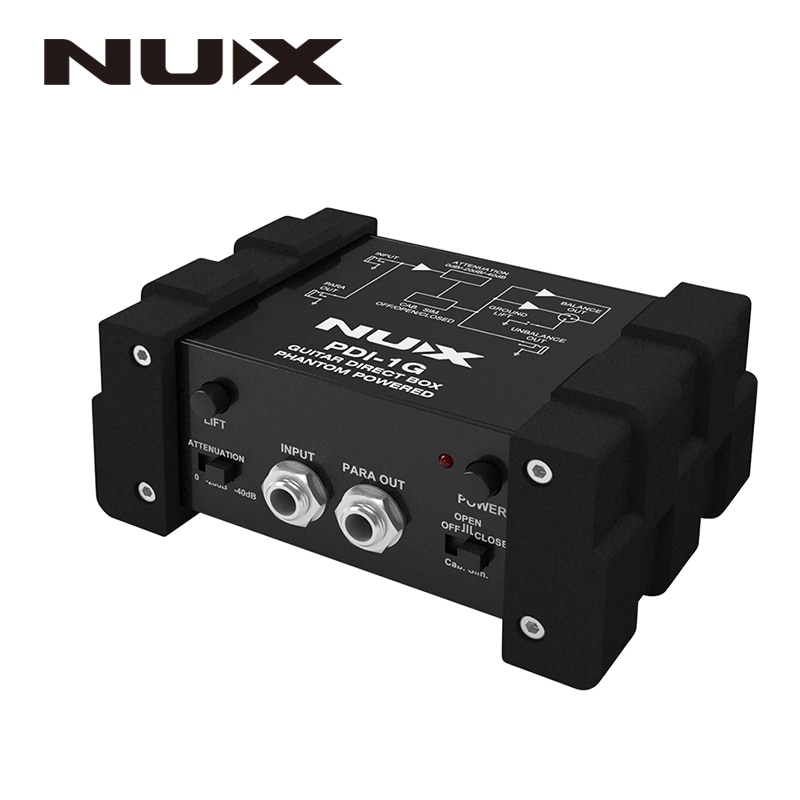

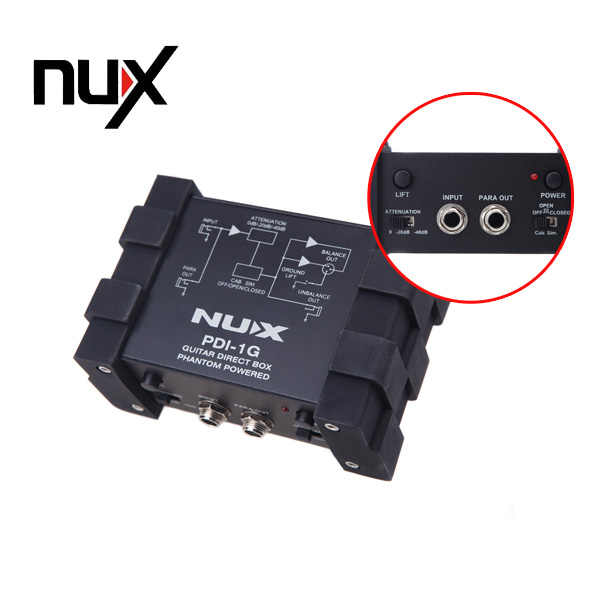

PDI-1G is a D.I. box to help to get very pure instrument signal to the mixer. With the speaker cabinet simulation function, you can plug your guitar or bass directly to the mixer thru PDI-1G. It also has a PARA OUT that allows you to output the sound of your favorite guitar amp head to the mixer while using the speaker cabinet simultaneously. It is a must for recording and live performance!
Hi-Z Input for Guitar and Bass
48V Phantom power and AC power
PARA Output Ground Lift
Speaker cabinet simulation.
Specifications
Power Supply
DC 9V or phantom power DC 48V
Related Input Level
-20dBu/0dBu/+20dBu
Maximize Input Level
+48dBu
Frequency Response
10-40khz(-1dBu)
Dwell Noisy
-110dBu
THD+N
0.055%@100
Electricity
6.5mA
Dimension
121x8x55 mm
Weight
350g
