MAX SPL
PEAK
PGM
RMS
WEIGHT
Cabinet type
Frequency response
Sensitivity 1w@1m
Coverage (h x v)
LF Driver
HF Driver
Impedance
Crossover frequency
Vertical spread angle

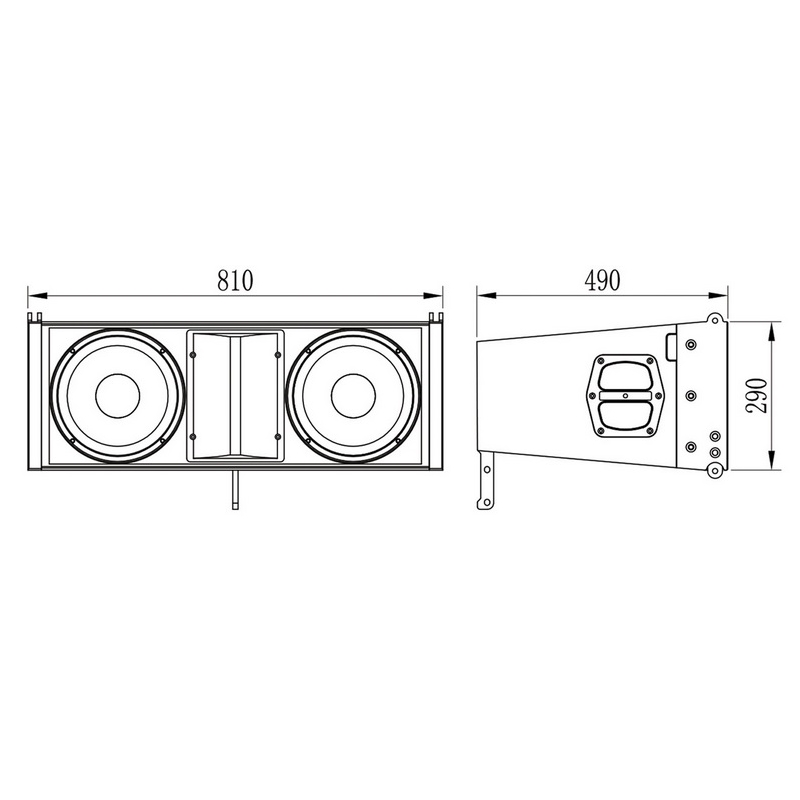

Dimensions (wxhxd)
LF 128dB / HF 135dB
LF 1200W / HF 320W
LF 600W / HF 160W
LF 300W / HF 80W
30kg
2-way passive line array
65Hz – 20kHz (-10dB) / 80Hz – 18kHz (+/-3dB)
LF 97dB / HF 110dB
90 degree x angle dependent
2 x 8” / 50mm VC
2 x 1.75” / 44mm VC NdFeB
LF 16 ohm / HF 16 ohm
300Hz / 2kHz
0-6 degree (1 degree step)
743 x 276 x 440mm
