• TUNER diversity technology effectively improves the problem of dead point and promote the receiving stability.

• ID code function effectively prevent from the noise due to interference.

• Dual CH UHF frequency band design, more reliable transmission and low interference than VHF.

• Press one button of receiver to scan the non-interference frequencyband automatically and quickly.

• Infrared matching, press to match transmitter and receiver, convenient operation.

• SQ function to adjust sensitivity according to actual environment to improve anti-interference capability and receiving range.

• Independent bal XLR and unbal (6.3mm) combo out, convenient connection.

• Low power indication of transmitter, intuitive display .

• Low cut/low attenuation function effectively reduces ambient noise and vibration noise.

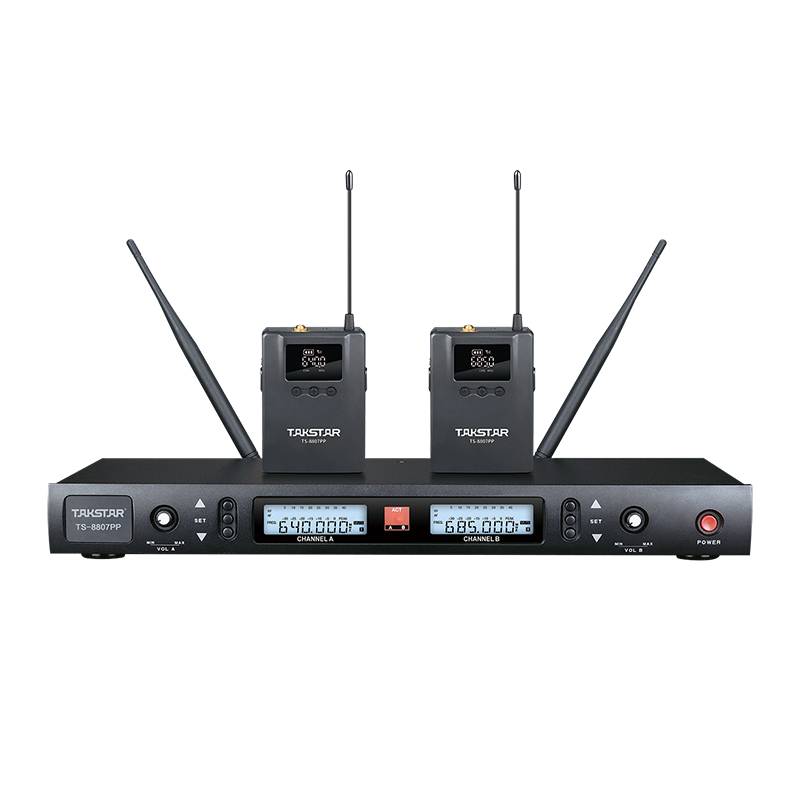

System Specification
• Frequency Range: 470~-960MHz (frequency band design)
• Modulation: FM
• Mute Control: frequency guide ID code
• Adjustable Range： 50MHz
• Frequency Band Qty: 200
• Frequency Band Interval: 250KHz
• Frequency Stability：±0.015%
• Dynamic Range：≥100dBA+
• Modulation Deviation：±48KHz
• Frequency Response: 50Hz~18KHz
• S/N Ratio：≥105dB A+
• Distortion:≤0.5%（at 1KHz)
• Operation Temperature：-20℃～+50℃
• Operation Range： 50m (open area)

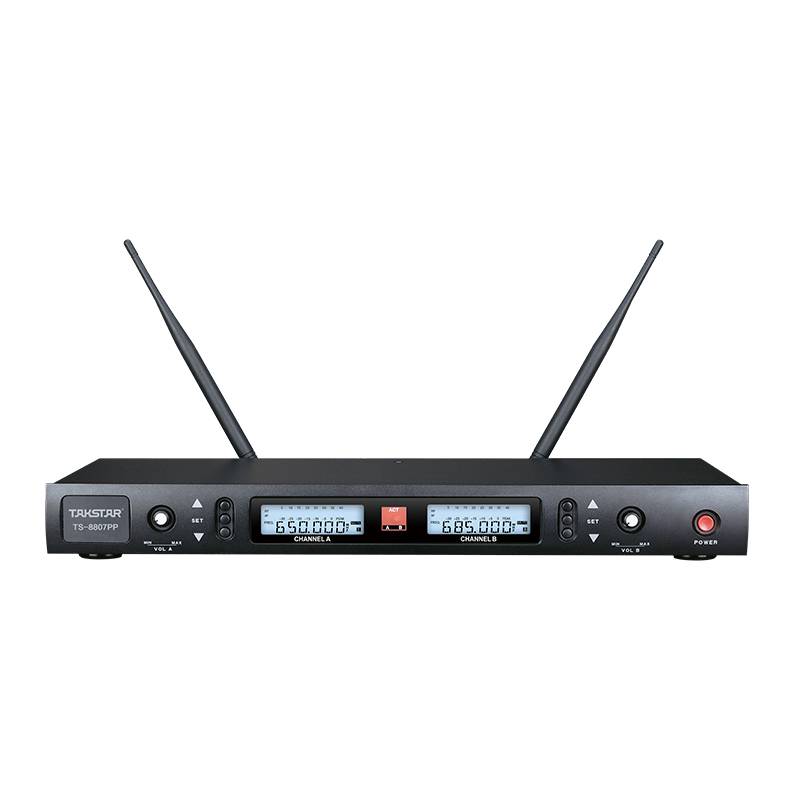

Receiver
• Power Supply： DC=12V/0.5A
vFrequency Out: independent bal and combo
• Wireless Connector： TNC/50Q impedance
• Sensitivity:≤-90dBm (wiringtest)
• Audio Out Max Level： 2.0V/RMS(at 1KHz THD=1%)
• Dimension (LxWxh)： 430x190x51mm
• Weight： 2480g

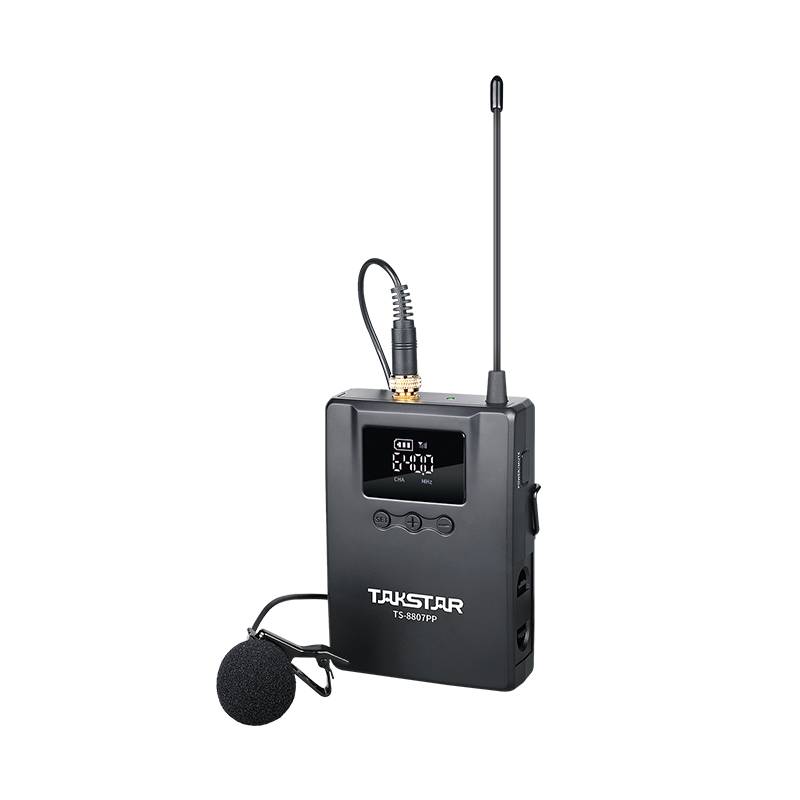

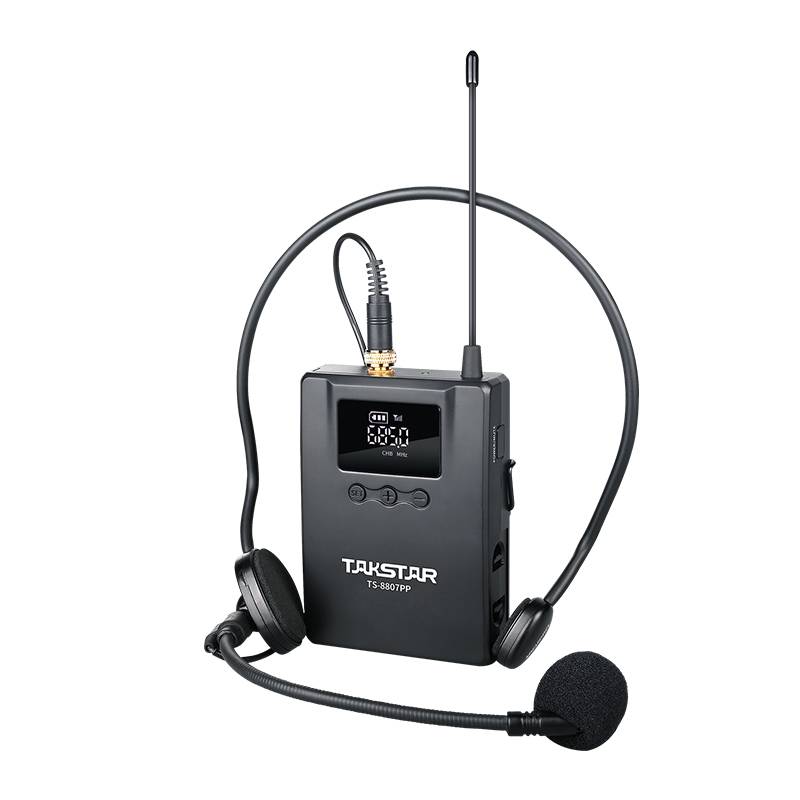

Gransmitter
• OutputPower:≤10mW
• Power Supply: two AA batteries
• Operation Time：≥8h
• Dimension (LxWxH)： 100x64x24.5mm
• Weight: 80g
