UWMic9 Kit1
UHF Wireless Lavalier Microphone System
Brand: Saramonic

The Saramonic UwMic9 Kit1 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.

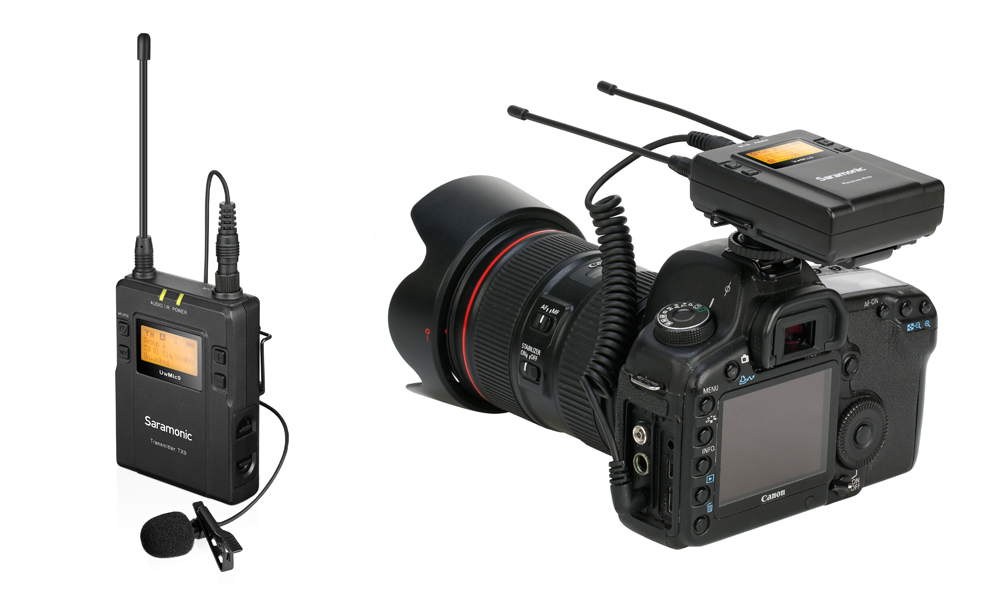

The system includes a camera-mountable wireless receiver, a wireless body-pack transmitter and clip-on lavalier mic.

Receiver (x1)

The Saramonic UwMic9 RX9 is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver.

Equipped with an auto-scan function, the RX9 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.

Transmitter (x1)

This compact transmitter UwMic9 TX9 employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.

  • Reliable, broadcast-quality audio
  • Wireless transmitter with lavalier microphone
  • 514 MHz – 596 MHz
  • 96 selectable channels in 2 groups
  • Headphone monitoring
  • Easy-to-read LCD displays
  • Over 330-feet (100m) in open areas or 200-feet (60m) with obstacles
  • Optional handheld and XLR transmitter for different applications.

Channels:
 96

 Groups:
 A or B

 Oscillator Type:
 PLL Synthesizer

 Frequency Range:
 514 MHz – 596 MHz

 Reference Deviation:
 +/- 5 kHz (-60dBV, 1kHz input)

 Signal to Noise Ratio:
 70 dB or more

 Spur Suppression:
 -60 dB

 Voice Delay:
 12 ms

 Antenna:
 1/4λ wire antenna

 Audio input connector:
 TX9:3.5mm mini jack


HU9: none

TX-XLR9: XLR-3-11C type (female)

 Reference audio input level:
 -60dBV (MIC input, 0dB attenuation)

 Distortion:
 0.5% or less

 Weight:
 TX9: Approx. 211.4g (excluding batteries)


HU9: Approx. 338.2g (excluding batteries)

TX-XLR9: Approx. 138g (Excluding batteries)

 Battery:
 Two AA size batteries

 Dimensions:
 TX9: 170.9 x 63.5 x 30.0 mm
HU9: 254.0 x 52.0 x 52.0 mm
TX-XLR9: 105.5 x 43 x 34.7 mm

 Operating temperature:
 0℃ to 50℃

 Storage temperature:
 -20℃ to +55℃

Receiver

 Channels:
 96

 Groups:
 A or B

 Oscillator Type:
 PLL Synthesizer

 Audio output connector:
 3.5mm mini jack

 Antenna:
 1/4λ wire antenna

 Audio output level:
 -60dBV

 Headphone output level:
 30mW (16Ω)

 Receiver frequencies:
 514 MHz – 596 MHz

 Signal to Noise Ratio:
 70 dB or more

 Voice Delay:
 12 ms

 Reference Deviation:
 +/- 5 kHz (-60dBV, 1kHz input)

 Frequency response:
 40Hz to 18kHz (+/-3dB)

 Distortion:
 0.5% or less

 Spur Suppression:
 -60 dB

 Weight:
 218.7g (Excluding batteries)

 Battery:
 Two AA size batteries

 Dimensions:
 170.9 x 63.5 x 30.0 mm

 Operating temperature:
 0℃ to 50℃

 Storage temperature:
 -20℃ to +55℃
