Features
2 input / 2 output 24-bit / 96kHz USB 2.0 24-bit Audio Interface
microphone preamp with +48V phantom power support
Hi-Z instrument input with 1/4" connector
USB bus powered
max. 24bit/96kHz
line input with RCA connectors
line output with balanced 1/4" TRS connectors
headphone output with 1/4" connector
ADC with 102dB(a) dynamic range
DAC with 108dB(a) dynamic range

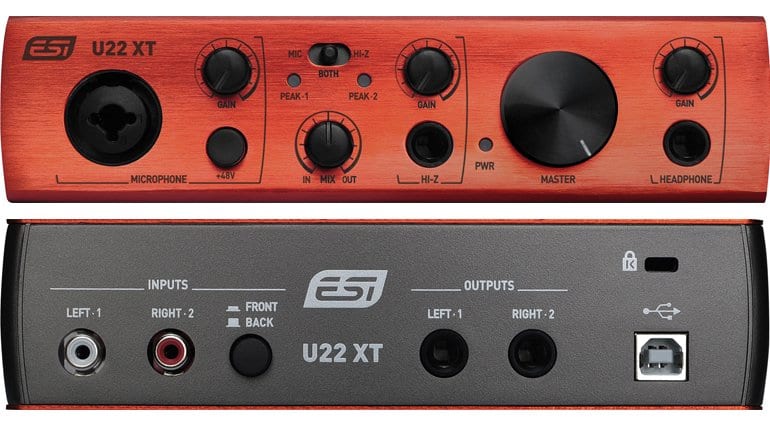

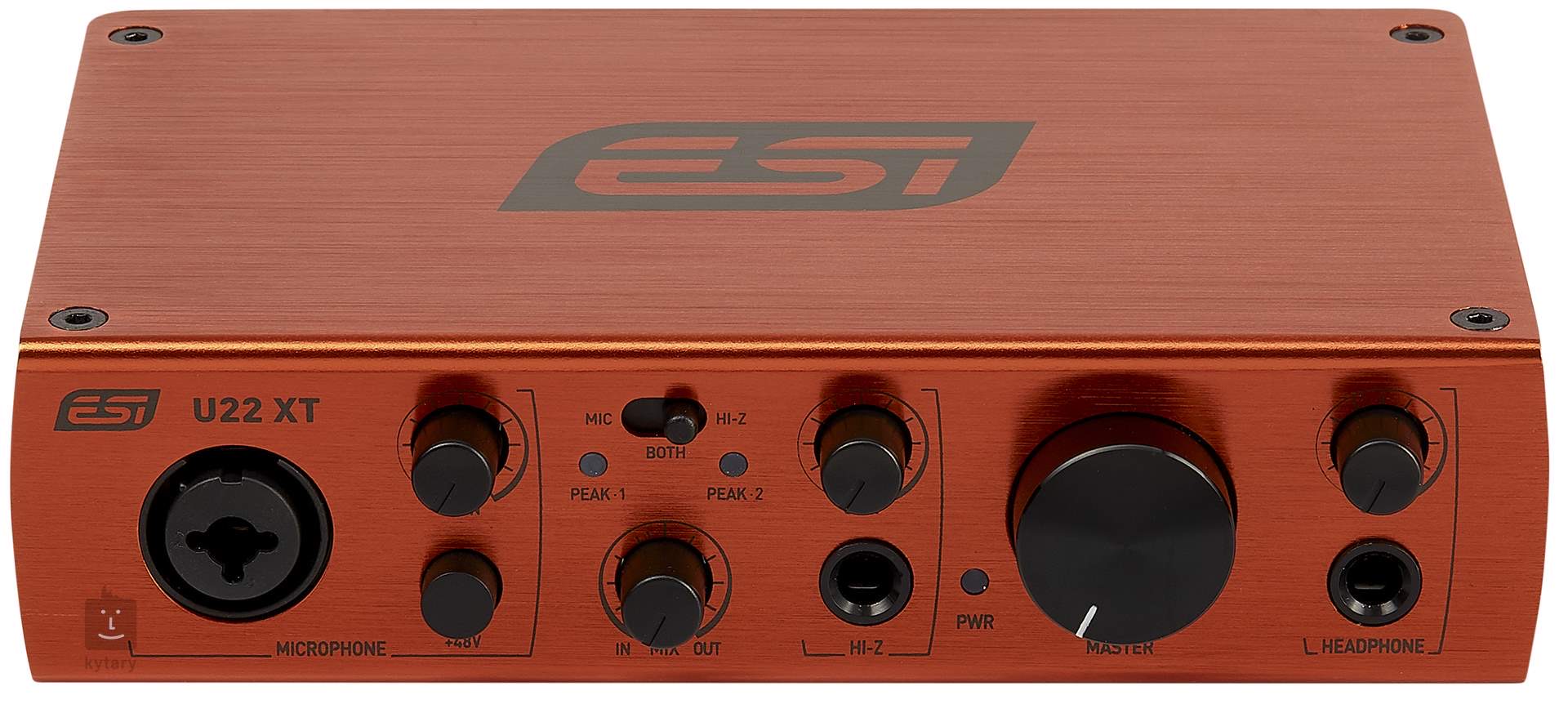

input / output monitoring controlled on front panel
master volume control on front panel
supports Windows Vista, Windows 7, Windows 8.1 and Windows 10 with ASIO 2.0, MME, WDM and DirectSound incl. DirectWIRE support
supports Mac OS X (10.7 and above) via the native CoreAudio USB audio driver from Apple (no driver install required)
supports many Linux distributions via the ALSA USB audio class support
includes Bitwig Studio 8-Track digital audio workstation software
includes license of inTone 2 ESI Edition from Audified
dimensions roughly 17.5cm x 12.0cm x 4.5cm
Bundled Software included
Bitwig Studio 8-Track - the trim and effective DAW to start producing, performing, and designing sounds like a pro for use on up to eight tracks of audio / MIDI, incl. the Bitwig Essentials Package, a versatile selection of handpicked presets and sounds. Record instruments, create your arrangements, design new sounds, or just jam - every feature has been developed by musicians, for musicians!
inTone 2 ESI Edition by Audified is a powerful jamming tool to produce mixes of multiple audio signals and instruments, play files, change tracks, prepare streams for podcasts and recordings. As an effects host you can use it with the included GK Amplification 2 LE and ampLion Free as a bass and guitar amp simulator and much more - anything you need for your creativity!
Cubasis LE is the compact version of Steinberg's mobile multitouch sequencer, providing the same look and feel of its bigger brother Cubasis. Specially designed for quick and easy operation, Cubasis LE makes recording, editing and mixing a breeze, no matter where you are, right there on an iPhone or iPad when connecting U22 XT.
