KROME EX-61
Semi Weighted Keyboard. Velocity sensitive is supported, after touch is not supported.
Standard C2 - C7 (transposable in the range [C1...C6]-[C3...C8])

System
EDS-X（Enhanced Definition Synthesis - eXpanded）

Sounds
Maximum Polyphony - 120 voices (120 Oscillators) / Single Mode, 60 voices (120 Oscillators) / Double Mode
*The maximum simultaneous voice polyphony will vary depending on oscillator settings, velocity crossfading and whether you are using mono or stereo multisamples.
PCM Memory - 4 GB (In case of 48 kHz, 16-bit Linear PCM converted)
728 multisamples (including 44 Stereo multi-samples)
2,502 drumsamples (including 574 Stereo Drumsamples )

Program
Oscillator - OSC1 (Single); OSC1 + 2 (Double): Stereo multisamples are supported 8 velocity zones per oscillator with switching, crossfades and layers
Filters - Four types of filter routing (single, serial, parallel, 24 dB). Two multi-mode filters per oscillator (low pass, high pass, band pass, band reject)
Driver - Per-voice nonlinear driver and low boost
EQ - Three bands, with sweepable mid
Modulation - For each oscillator, two envelope generators (Filter & Amp), two LFOs, two key tracking generators (Filter & Amp), two AMS mixers, Pitch EG, Common LFO, two common key tracking generators

Combination
Timbre Number - Max 16. For each Timbre, keyboard and velocity split/layer/crossfades.
Modifications to the program settings via the Tone Adjust function.

Drum Kit - Stereo and mono drum samples. 8 velocity zones switch (crossfades and layers)

The number of Combination / Program / Drum Kit
User Combination - 768 Combination (512 Preload)
User Program - 1536 Program (896 Preload)
User Drum Kit - 80 Drum Kit (48 Preload)
Preset Program - 256 GM2 Program + 9 GM2 Drums Program

Effects
Insert Effects - 5 Insert Effects (stereo in/out)
Master Effects 2 - Master Effects (stereo in/out)
Total Effect - 1 Total Effect (stereo in/out)
Timbre / Track EQ - 3-band EQ per in 1 Timbre / in 1 Track
Effect Types - 193 types (Usable as insert, master, or total effects. However, double-size effects cannot be used as a total effect.)
Modulation - Dynamic Modulation, 2 Common LFO
Effects Control Busses - Stereo side chain (Limiter, Gate, Vocoder etc.)
Effect Preset - 32 preset per effect

Polyphonic Arpeggiator
Program Mode - 1 unit
Combination, Sequencer Mode - 2 units are available
Number of pattern - 5 preset Arpeggio pattern, 1,088 User Arpeggio pattern (960 Preload)

Drum Track
Preset Patterns - 710 patterns (Common with the preset pattern of the Sequencer mode)
User Patterns - 1,000 patterns (Pattern created in Sequencer mode can be converted to drum track user pattern)
Others - Configurable “Trigger Mode / Sync / Zone”

Sequencer
Tracks - 16-track + 1 master track
Number of Songs - 128 Songs
Resolution -♩=1／480
Tempo - 40.00 - 300.00 (1/100 BPM resolution)
Maximum memory - 210,000 MIDI events
Template Songs - 16 preset / 16 user template songs
Cue List function - 20 Cue List
Songs can be arranged consecutively or repeatedly in up to 99 steps, a cue list can be converted back into a song.
Pattern / RPPR (Realtime Pattern Play and Recording) - 710 Preset / 100 User pattern (Per song). 1 pattern set per song
Format - KORG (KROME) format, SMF format 0 and 1

Media
Load, Save, Utility, Data filer functionality (Save and Load MIDI System Exclusive Data)

Controllers
Controllers - Joystick, SW [1], SW [2]

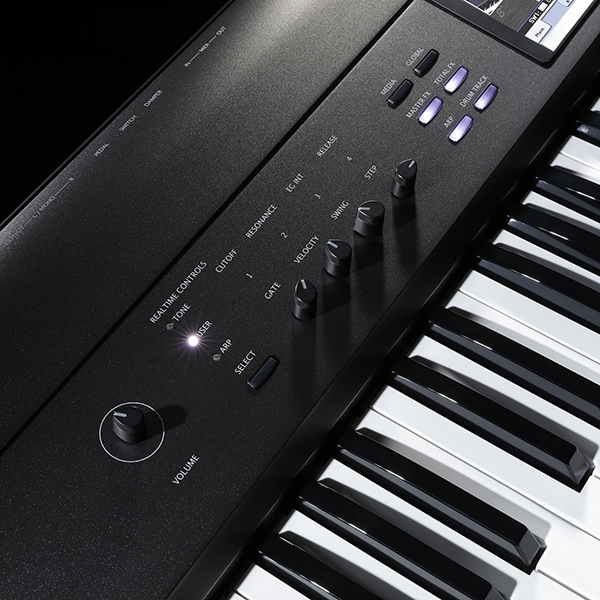

Realtime Control - [SELECT] Switch: TONE, USER, ARP 4 Knobs: Modulation, User, Arpeggio control
Drum Track - [DRUM TRACK] Switch: On/Off
Arpeggiator - [ARP] Switch: On/Off

User Interface

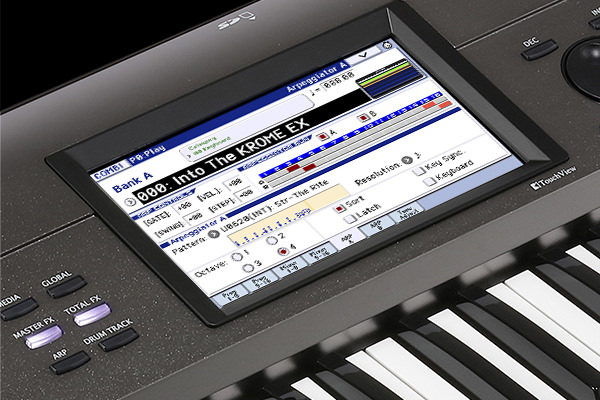

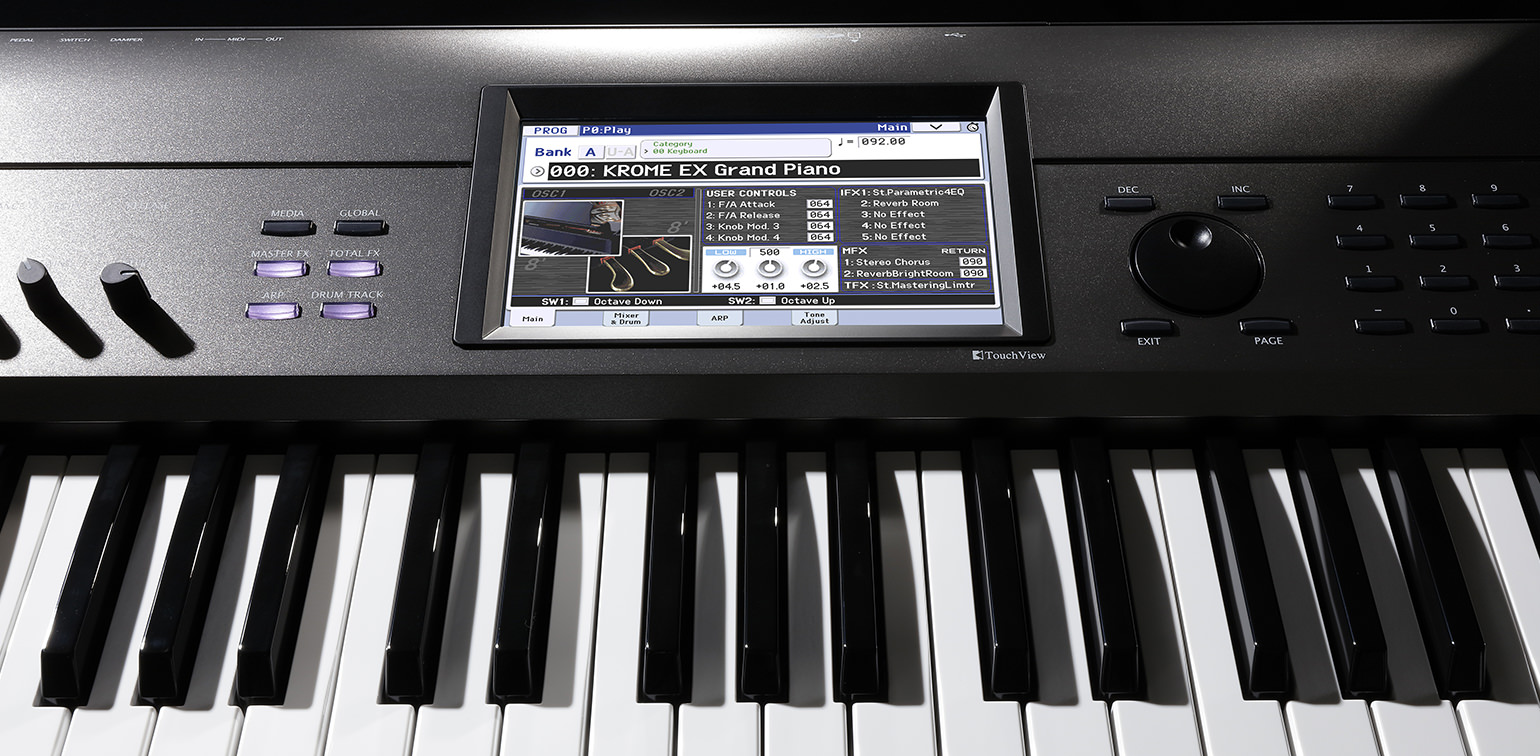

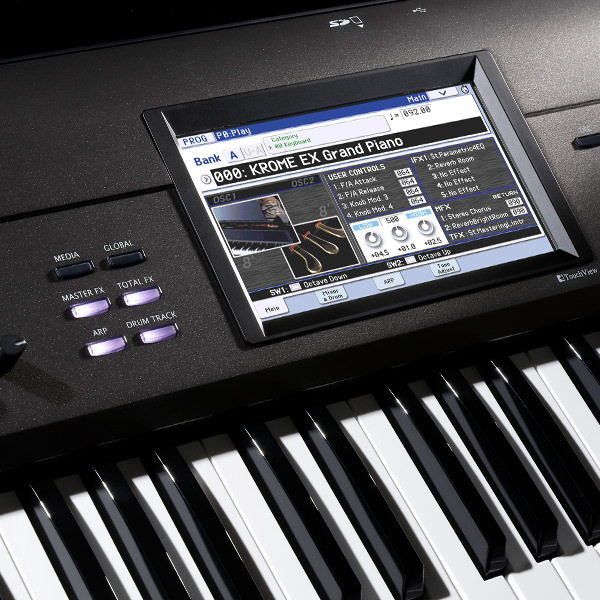

Display - Touch view graphical User Interface, 7 -inch Color TFT LCD, 800 x 480 pixel, Onboard LCD brightness control
Mode Switches - [COMBI], [PROG], [SEQ], [GLOBAL], [MEDIA] Switch
VALUE controllers - [VALUE] Dial, [INC], [DEC] Switches, 10 key block ([0] - [9], [-], [.], [ENTER], [COMPARE])
BANK Switches - [A], [B], [C], [D], [E], [F] switches (in Combination mode, [A], [B], [C], [D] switches are available)
SEQUENCER switches - [PAUSE]、[REW]、[FF]、[LOCATE]、[REC]、[START／STOP]
TEMPO - TEMPO
Others - [PAGE] switch, [WRITE] switch, [EXIT] switch, [VOLUME] knob, Contrast knob

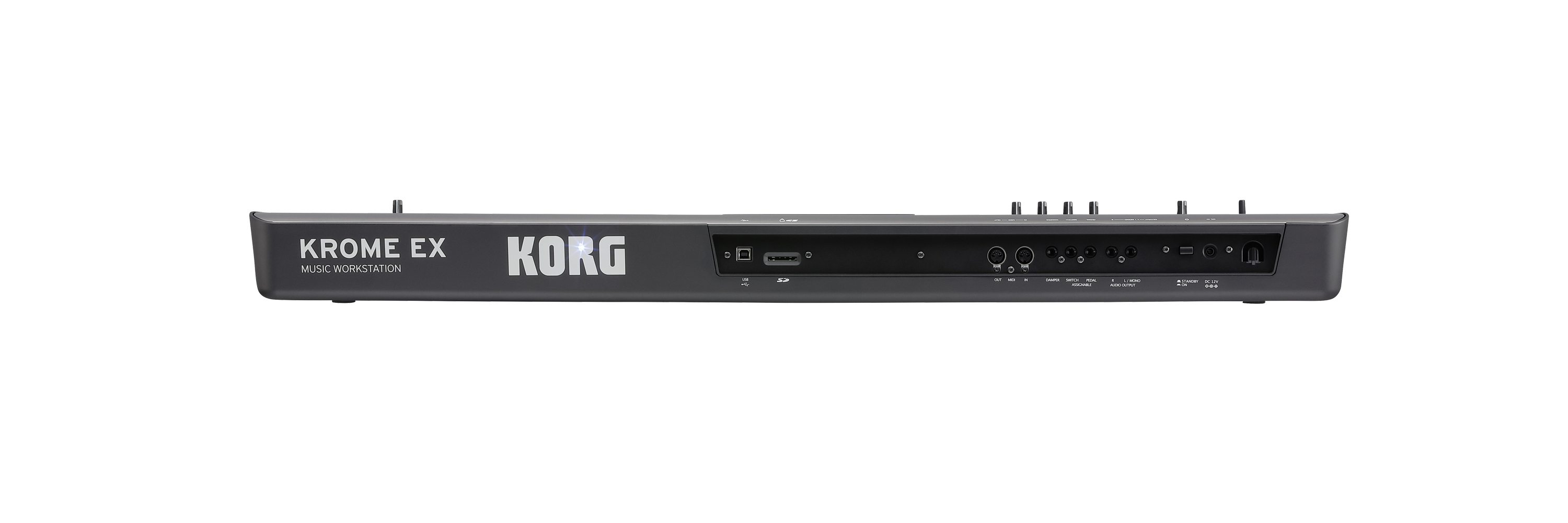

Outputs
AUDIO OUTPUT, L／MONO, R - 6.3mm (Mono) Phone jack, Unbalanced.
Output Impedance: 1.1[kΩ] (L / Mono terminal: in case of Mono output, = 550[Ω]).
Maximum level: +16.0 [dBu], Load Impedance: more than 10 [kΩ].
Headphone Output - 3.5mmStereo phone jack.
Output Impedance: 33[Ω].
Maximum level: 60 + 60 [mW] (In case of 33[Ω] Loaded)

Control Input
DAMPER (Half Damper supported), ASSIGNABLE SWITCH, ASSIGNABLE PEDAL

Others
MIDI - IN, OUT
USB - USB-MIDI Interface (TYPE B) x 1
SD Card Slot - Max 2 GB / SD Memory Card is supported
Max: 32 GB/ SDHC Memory Card is supported (SDXC Memory Card is not supported)

Principle Specifications
Power - Power supply (DC12V 3.5A), POWER switch
Power Consumption - 13W

Dimensions (W x D x H): KROME EX-61: 1,027 mm × 313 mm × 93 mm / 40.43 x 12.32 x 3.66 inches
Weight KROME EX-61: 7.2 kg / 15.87 lbs.
Included Items AC Adapter,
