Keyboard - 61 keys with Velocity
Sounds
Factory - More than 950 (including Stereo Piano and GM 2 Sounds) , 64 Drum Kits.
User - 256 Sounds, 128 Drum Kits
Tone Generator - 128 Oscillators (max polyphony 128 voices) - Filters with Resonance
PCM User Memory 96 MB
Styles
Factory - More than 360 preloaded Styles, freely reconfigurable
User - Up to 1,200 available Style locations including the Favorite/User banks
Structure - Eight Style tracks, 4 Single Touch Settings and one Style Performance per Style
Style controls - 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Autofill, Synchro Start/Stop, Tap Tempo/Reset, Manual Bass, Bass Inversion, Memory, Accompaniment Mute, Snare & Kick Designation, STS Mode – Chord Sequencer
Others - Guitar Mode 2
Parallel and Fixed NTT, Style Record with Step Record, Track and Event Edit functions
Effect
Effects & EQ - 4 Stereo Master FX / 125 Effects types
Three band EQ for each track – Articulations
Limiter - Master 4 band Parametric EQ
Others - Dynamic Nuance Control (DNC) Technology
Full editing of Sounds and Drum Kits
Realtime sound control using Assignable Switches
Controllers - Joystick – 2 Assignable Switches
User Sampling - No Exist
Performance/STS - 320 Realtime Performance locations
STS: Memorize Realtime tracks
Up to 4 x Styles, up to 4 x SongBook entries
My Setting special Performance
Realtime Tracks - Four Keyboard tracks (Upper 1, 2, 3, Lower)
Pads 4 Pad tracks + Stop button – Pad Record
Song Play - Single Player with Select, Start/Stop, Home, Rewind and Fast Forward controls
Jukebox function - Compatible with SMF (formats 0 and 1) and MP3 with Vocal Remover -
Lyrics (compatible with CDG), Score, Marker
Display - 7” 800 x 480 TFT Graphical Color TouchView
Sequencer - Quick Record (Backing Sequence), Multitrack and Step Record functions
Full featured sequencer - 16 tracks - Up to 100.000 events - SMF format
Song Book - Fully programmable music database, based on Styles, SMF, Karaoke, MP3 with automatic selection of Style Play and Song Play modes - User-definable custom lists - Filtering options
Search - Yes for Style, Song, Performance, SongBook, Sound and Lyrics TXT
Compatibility for Sound Data - “i-Series": Styles only
“Pa series”: Style, Performance, Sound, PCM, Song, SongBook and Pad
General Controls - Master Volume, Real Time-Acc/Seq Balance Volume, Ensemble, Octave Transpose,
Master Transpose, Fade In/Out, Tempo Lock, Style Change - Quarter Tone Arabic Scale,
User Scale memorized inside Performance/STS, Search, Lyrics, Score, Maker, Dial, Tempo, Metronome, Split

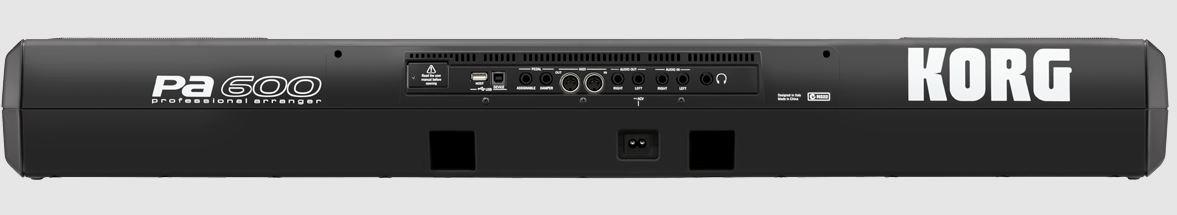

Connections
Control Inputs - Damper Pedal, Assignable Pedal/Footswitch
Line Out - Unbalanced Jack Left/Mono, Right, Headphones
2 Unbalanced Line In Jacks
MIDI - In, Out MIDI connectors - USB to Midi using the USB Device port Individual track assignment - 8 user definable MIDI Preset
USB - Type A (TO DEVICE) x 1: 2.0 Hi Speed Type B (TO HOST) x 1: 2.0 Hi Speed
Speaker System
Amplification - 15W x 2
Speakers - 100 mm x 2 Double Cone Speakers in Bass Reflex Box
Power
Power Supply - AC 100-240 V
Power Consumption - 20 Watt
Dimensions
(W x D x H)- 1,030 x 378 x 127 mm (without music rest)
Weight - 11 kg (without music rest)
Accessories - Owner’s Manual, Music Stand, AC Cable
