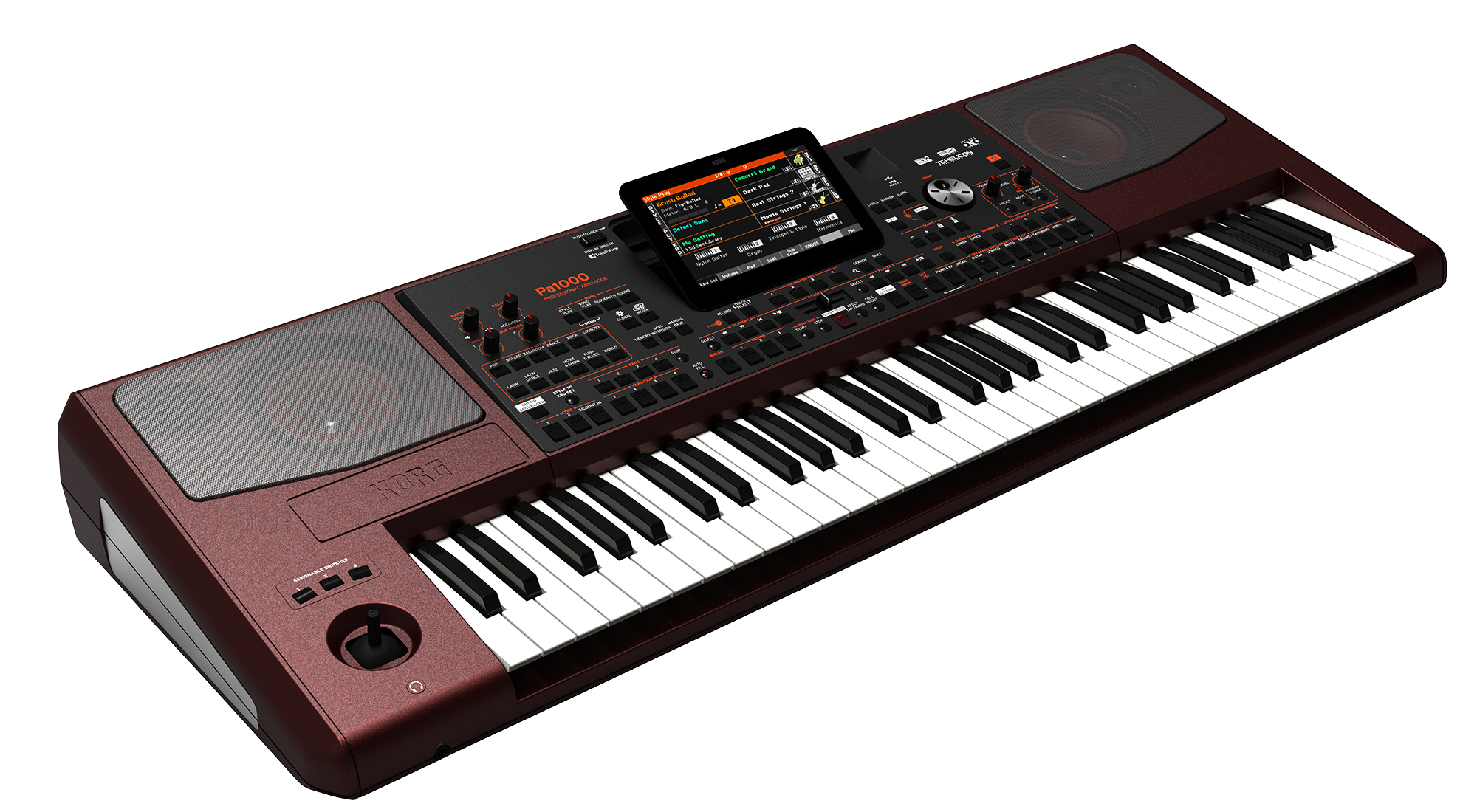

Keyboard
61 semi-weighted keys (C2 – C7) with velocity and aftertouch
System
Upgradable operating system, Multitasking, Load while play
Sound Generator
EDS-X (Enhanced Definition Synthesis – eXpanded)
Filters with resonance, 3-band EQ on each Sound
Polyphony
128 voices, 128 oscillators
Effects
Accompaniment/Song: 2 insert effects; 2 master effects (148 types)
Keyboard Sounds - 1 insert effect; 2 master effects (148 types)
Final mastering effects - Limiter, Master EQ

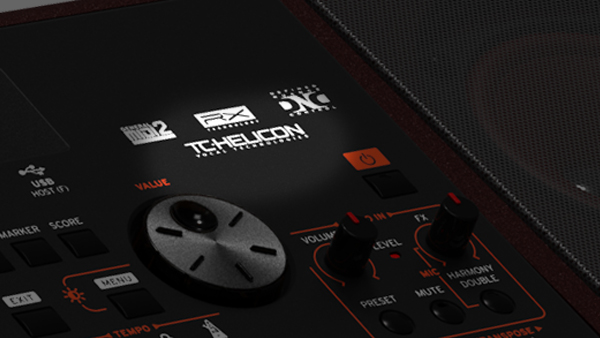

Voice Processor - EQ, Compressor, Gate, 3-voice Harmonizer (or Double), 2 x FX. Harmonizer, Double: Technology by TC•Helicon®
Presets - More than 30 Factory, 64 User
Guitar Processor - 3 x FX. Presets: 45 Factory, 64 User
Sounds / Drum Kits
Factory - More than 1,750 Factory Sounds, including two multilayer Stereo Pianos with damper and body resonance, GM/XG sound sets and 107 Drum Kits
User - 512 Sounds, 256 Drum Kits
Digital Drawbars - 9 footages, percussion, key on/off, leakage, rotary speaker effect , DNC (Defined Nuance Control) Technology, Natural Ambience Drums Full Sounds/Drum Kits editing
Sampling
User PCM Sample memory 300 MB compressed (equivalent to 600 MB linear data) Loads KORG, WAV, AIFF and SoundFont™ formats
Saves KORG, WAV and AIFF formats
Full Edit, Time Slice, Sampling
Styles
Factory - More than 430 Factory Styles, freely reconfigurable sets
User - 1,152 locations, including User and Direct banks Eight Accompaniment tracks, 4 Keyboard Sets, 4 Pads per Style; Style Settings (Sounds and Arranger parameters) on each Style
Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table)
Style/Pad Record with Step Record, Track and Event Edit

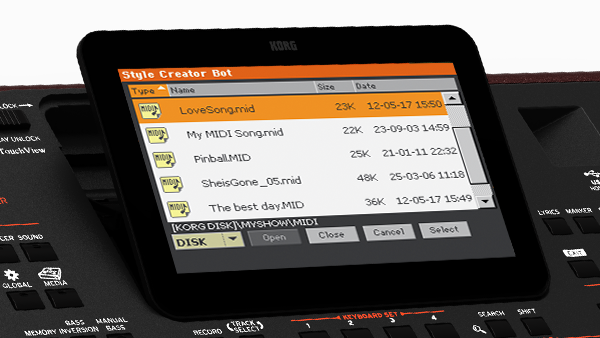

Style Creator Bot (MIDI Song to Style Converter)

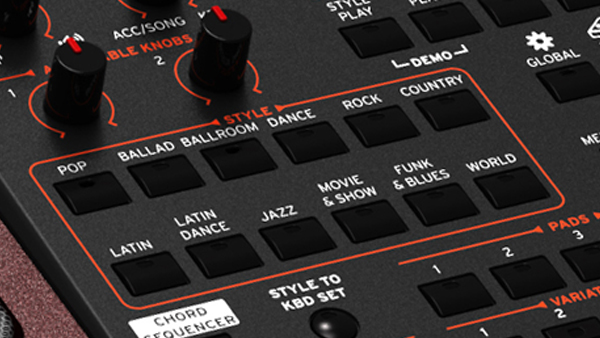

Style controls - 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to Keyboard Set Mode
Chord Sequencer
Chord Sequence recorder and player in Style Play mode
Chord Sequences can be saved to Style and SongBook Entries
Edit functions - Delete, Copy from Style/SongBook, Import/Export from/to SMF
Keyboard Set Library
Memorize Keyboard Sound settings
Factory - More than 300 Keyboard Sets, freely reconfigurable
User - 864 locations, including User and Direct banks ‘My Setting’ special Keyboard Set
KAOSS FX
Automatic MIDI FX generator
More than 65 Factory Presets
Song Play

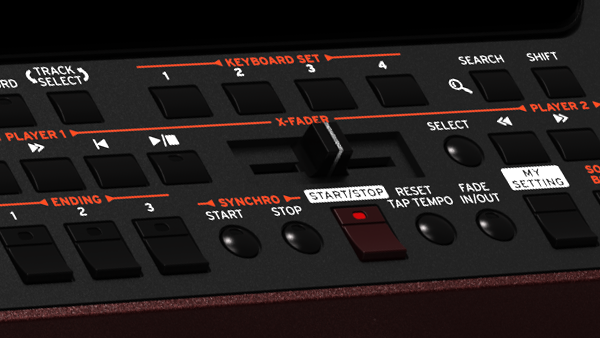

Patented XDS Crossfade Dual Sequencer Player with X-Fader control
Supported formats - MID, KAR, MP3+Lyrics, MP3+G
Two Players with separate Select, Start/Stop, Home, Rewind and Fast Forward controls
Lyrics, Score, and Chord data can be displayed on screen, or on an external video monitor
Markers with Add, Delete, Edit and Loop functions
Jukebox function
MP3 Player / Recorder
Double MP3 Player and MP3 Recorder
Transpose (+6/-5 semitones), Tempo change (±30%)
Vocal Remover
Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone, Guitar, Effects, KAOSS Effects
Sequencer
Quick Record (Backing Sequence), Multitrack and Step Record functions
Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF (MID) native format
SongBook
Fully programmable music database, based on Styles, MIDI Songs (MID and KAR files), MP3 Songs, with automatic selection of Style Play and Song Play modes
User definable Set Lists, with Entries selectable from the control panel
Filtering and sorting options
Compatibility
Pa-Series models - Styles, Performances/Keyboard Sets, Programs/Sounds, Songs, SongBook Entries, Pads
‘i-Series’ models - Styles
Pads
Four Assignable Pads + Stop buttons
Pad Record function
Controls

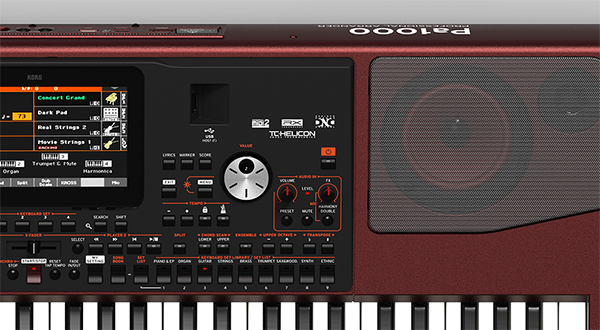

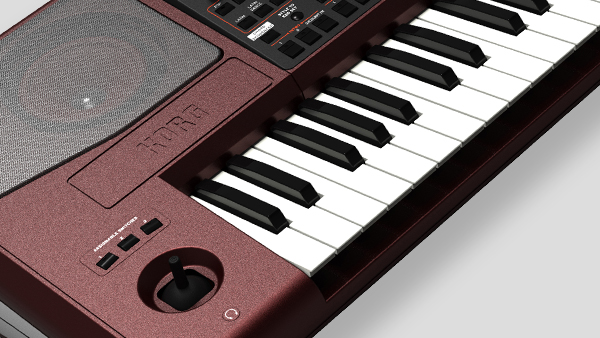

Master Volume, Fade In/Out, Keyboard-Acc/Song Balance, Ensemble, Octave Transpose, Master Transpose, Quarter Tone and Arabic Scale memorized inside Keyboard Sets, Joystick, Audio In Volume, Mic FX Level, Harmony/Double On/Off, Mic/Guitar Preset, Audio In Mute ,2 Assignable Knobs, 3 Assignable Switches, Tempo +/-, Tempo Lock, Metronome On/Off, Dial, Search, Shift, Chord Scan (Lower, Upper), Split, Track Select, Record
Virtual Quarter Tone SubScale Keypad, 4 x Scale Presets
Control Inputs
Damper pedal (supports half-pedaling with the optional DS-1H pedal)
Assignable pedal/switch

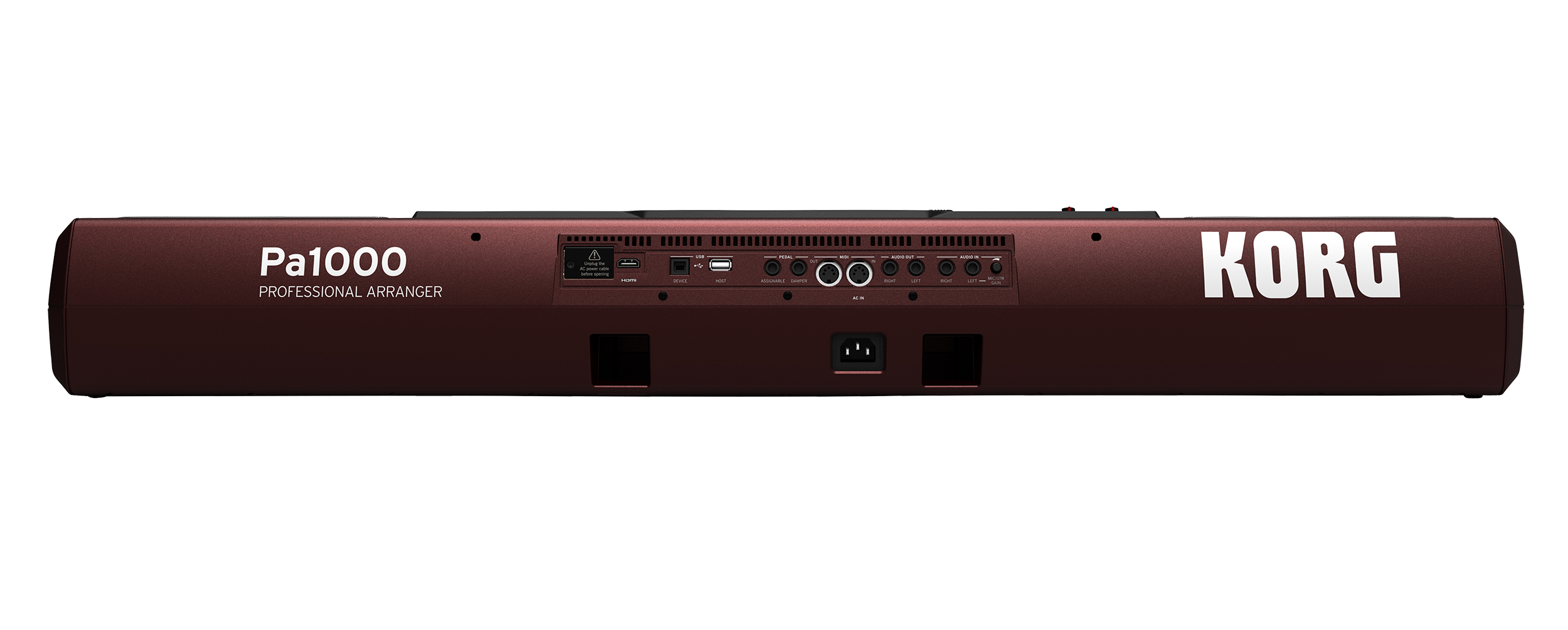

Audio Inputs
Line (Left/Right) - 1/4” jacks, +20dBm, 12k Ohm
Mic/Guitar (Left) - 1/4” jack, with Gain control (0 — +40dB)
12k Ohm (Mic) / 500k Ohm (Guitar)
Audio Outputs
Left/Right - 1/4” jack, +21dBm, 0.003% THD+N@+18dBm
Headphone output - 1/4” jack, 16-200 Ohms (50 Ohms suggested)
Speaker System
Amplification - 2 x 33 W
Speakers - 2 x 100 mm woofers in bass reflex box, 2 x 25 mm dome tweeters
MIDI
IN, OUT - Standard MIDI connectors
USB to MIDI using the USB ports
Eight user definable MIDI Setups
USB
Type A - HOST, for memory and controllers x 2 (front/rear)
Type B - DEVICE, for personal computers and tablets x 1 (rear) 2.0 Hgh-Speed connections (480 Mbit/s).
Storage
Internal memory - 960 MB
USB external drives (drive not included)
microSD card (not included); rear panel slot with plastic cover
Display

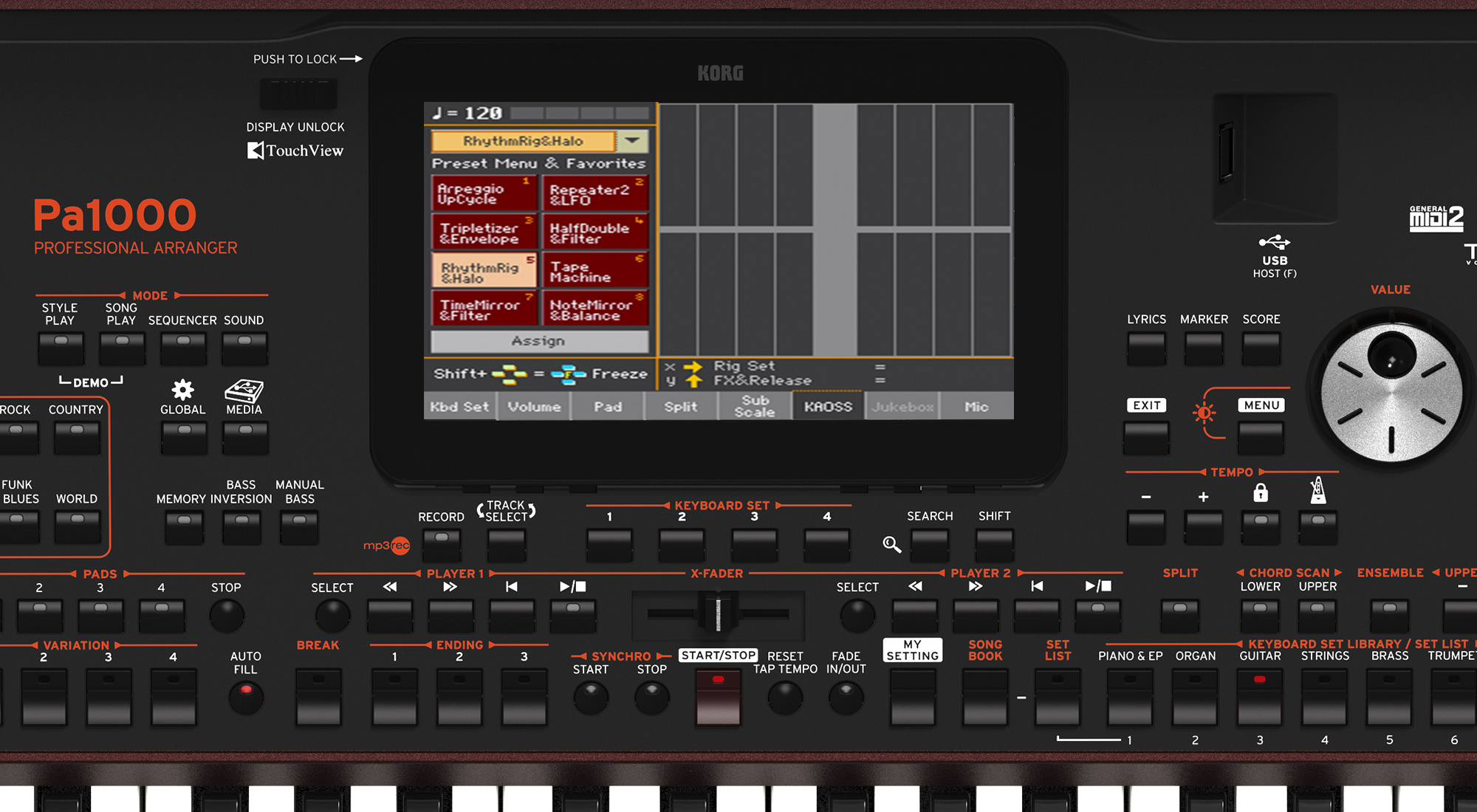

7” Wide capacitive color TouchView™ TFT display – Manual tilt system
Video Out
HDMI connector
Clock
Internal System Clock
Power Consumption
100–240 Volts, 50/60 Hz, 25 Watt normal / 0.3 Watt in standby
Dimensions (W x D x H)
1030 x 378.3 x 133 mm / 40.55" x 14.89" x 5.36" (without music stand; height with music rest: 355.8 mm / 14”)
Weight
10.75 kg / 23.7 lbs
Included Items
AC Power Cable, Music Stand, Quick Guide manual
