System - KRONOS System Version 3.0
Keyboard 88 key:61 key: Natural Touch Semi Weighted
Tone Generator
Synthesis Types 9
SGX-2: Premium Piano (Acoustic Piano)
EP-1: MDS Electric Piano (Electric Piano)
HD-1: High Definition Synthesizer (PCM)
AL-1: Analog Synthesizer (Analog Modeling)
CX-3: Tonewheel Organ (Tonewheel Organ Modeling)
STR-1: Plucked Strings (Physical Modeling)
MOD-7: Waveshaping VPM Synthesizer (VPM Synthesis)
MS-20EX: Component Modeling Technology (Analog Modeling)
PolysixEX: Component Modeling Technology (CMT Analog Modeling)
Maximum Polyphony*1*2 SGX-2: 100 voices*3
EP-1: 104 voices
HD-1: 140 voices
AL-1: 80 voices
CX-3: 200 voices
STR-1: 40 voices
MOD-7: 52 voices
MS-20EX: 40 voices
PolysixEX: 180 voices
*1: In rare cases, when a large number of processor-intensive effects are active simultaneously (for instance, more than 14 O-Verbs), polyphony may be slightly reduced.
*2: A portion of the multicore processor in KRONOS is devoted to generating voices, and a separate portion is devoted to generating effects. KRONOS dynamically allocates the voice processing power between the engines as necessary. The quoted maximum numbers of voices apply when 100% of the voice processing power is devoted to a single engine.
*3: 100 dual-stereo notes (equivalent to 400 mono voices)
Preset PCM - 314 MB (ROM 1,505 Multisamples, 1,388 Drumsamples)
Build-in Expansion PCM Libraries
EXs1 - ROM Expansion
EXs2 - Concert Grand Piano
EXs3 - Brass & Woodwinds
EXs4 - Vintage Keyboards
EXs5 - ROM Expansion 2
EXs6 - SGX-1 German D Piano
EXs7 - SGX-1 Japanese C Piano
EXs8 - Rock Ambience Drums
EXs9 - Jazz Ambience Drums
EXs17 – SGX-2 Berlin D Piano
EXs18 – KORG EXs Collections
PCM RAM Capacity - Approx. 2GB *4
*4: The memory available for Sampling Mode will change based on the use of Expansion PCM libraries and User Sample Banks. Approx. 760 MB is available when shipped from the factory (When loading the file named “PRELOAD.KSC”).
Wave Sequences - 598 User memory, 187 Preload
Support for stereo multisamples, synchronization of individual notes, and tempo-based settings.
Combination
Number of Timbres, Master Keyboard Functionality
16 Maximum
Keyboard and velocity splits, layers, and crossfades of up to 16 Programs and/or external MIDI Devices
The tone adjust parameter function lets you modify program settings, and the master keyboard function lets you control external MIDI devices
Advanced Vector Synthesis - Control oscillator volumes and synthesis & effects parameters via the Vector Joystick and the tempo-synchronized Vector Envelope.
Drumkit
System - Assignable stereo/mono samples with 8 velocity zones per oscillator (with crossfade functions)
Number of Programs/Combinations/Drum kits
User Memory Programs - 2,560 (1,792 [896 HD-1+896 EXi] come preloaded)
User Memory Combinations - 1,792 (512 come preloaded)
User Memory Drum Kits - 264 (78 come preloaded) 256 GM Level2 preset programs + 9 GM Level 2 drum preset programs
Set List
Number of Set Lists/Slots - 128 set lists, 128 slots per set list
Each set list provides a 9-band graphic EQ, and a Tone Adjust function that allows program settings to be adjusted.
Transpose setting.
Hold Time setting of Smooth Sound Transition (SST) supported for each slot.
Sampling
System - Open Sampling System (resampling, In-Track sampling)
Bit Depth/Sampling Frequency - RAM: 16-bit/48 kHz stereo/mono sampling
DISK: 16 or 24-bit/48 kHz
Sampling Time - RAM: Depends on the amount of available PCM RAM
DISK: Maximum 80 minutes stereo (879MB: 16bit)
Sample Locations - 16,000 samples/4,000 multisamples (128 indexes per multisample)
Ripping Direct sampling (ripping) from audio CD (CD-DA)
Formats - KORG format, AKAI S1000/S3000 data (with advanced Program parameter conversion); SoundFont 2.0, AIFF, and WAVE formats
Editing - Time Stretch, Time Slice, Crossfade Loop, and other standard editing features.
Effects
Insert Effects - 12 Stereo in / stereo out
Master Effects - 2 Stereo in / stereo out
Total Effects - 2 Stereo in / stereo out
Timbre EQ - One 3-band EQ for each timbre/track
Effect Types - 197
Modulation - Dynamic Modulation and Common LFO
Effects Control Busses - Stereo side-chaining for compressors, gates, vocoders, etc.
Effect Presets - Total 783 preset, Maximum 32 per 1 effect (Preset User)
KARMA
KARMA Modules - One module in Program mode, four modules in Combination and Sequencer modes
Generated Effects (GE) - 2,048 presets, 1,536 Users (96 come Preload)
Controllers - On/Off, Latch, Chord, Assign, Module, Control, KARMA Realtime Control Sliders [1] – [8], KARMA Scene [1] – [8], KARMA Switches [1] – [8], KARMA Wave-Sequencing, GE Sub Category, Freeze Randomize, Time Signature Control, Tempo Synchronize, Auto RTC (Real Time Control) setup
Drum Track Patterns - 718 preset (common with the preset patterns of the MIDI sequencer)
1,000 user patterns
Patterns created in Sequencer mode can be converted to drum track user patterns.
Trigger Mode/Sync/Zone settings can be specified.
Sequencer/HDR
Tracks - 16-track MIDI sequencer + 16-track hard disk recorder + 1 master track.
Number of Songs - 200 songs
Resolution - 1/480
Tempo - 40.00 – 300.00 (1/100 BPM resolution)
Maximum Memory - 400,000 MIDI events or 300,000 audio events
MIDI Tracks - 16 tracks plus the master track
718 preset/100 user patterns (per song)
18 preset/16 user template songs,
Audio Tracks - 16-track playback, 4-track simultaneous recording, WAV file format 16bit/24bit.
Other Functions RPPR (Realtime Pattern Play and Record) (1 Pattern set per song), Auto Song Setup function
General
Disk Mode - Load, save, utility, audio CD burning, audio CD playback, data filer function (save/load MIDI System Exclusive data), CD-R/RW (UDF format read/write), ISO9660 Level 1.
Controllers - Vector joystick, joystick, ribbon controller, switches 1 & 2
Control Surface:
Control Assign Switches:
Assigns the Control Surface to Timber/Track, Audio, External, Realtime Knobs/KARMA,
Tone Adjust/EQ
Mixer Knobs Switch:
Assigns the Mixer Knobs to either Channel Strip or Individual Pan, Reset Control Switch, Solo Switch, Knobs 1-8, Switches 1-8(Upper Row), Switches 1-8 (Lower Row), Sliders 1-8, Master Slider
KARMA Control:
On/Off, Latch, Module Control
DRUM TRACK:
On/Off

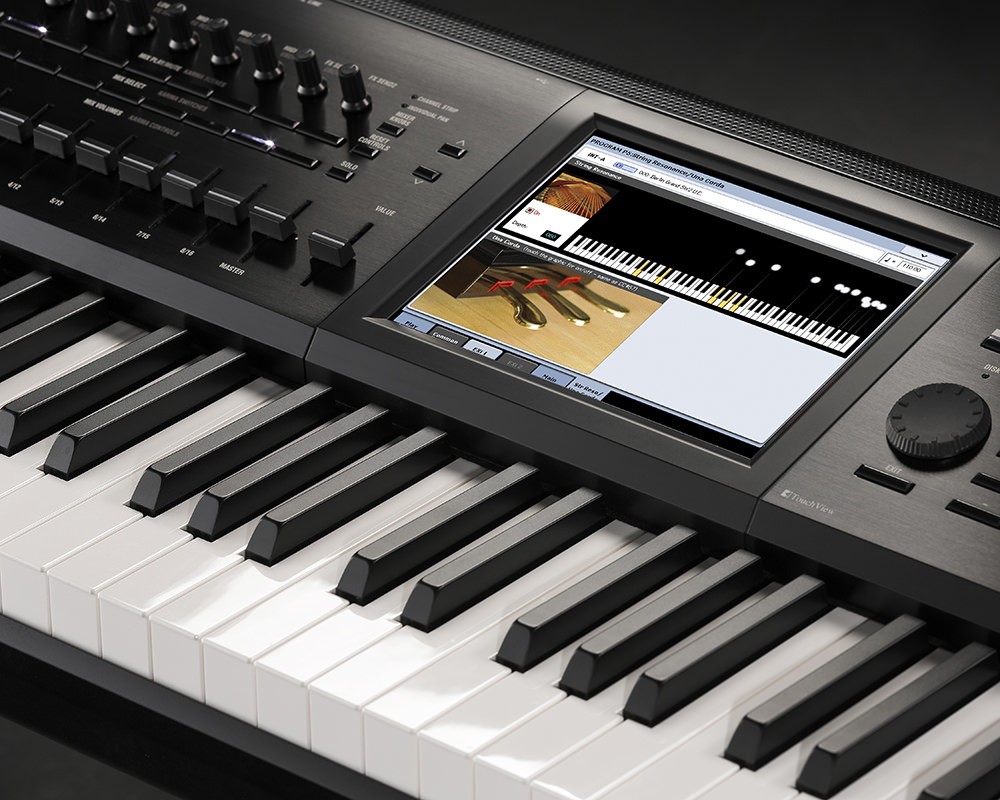

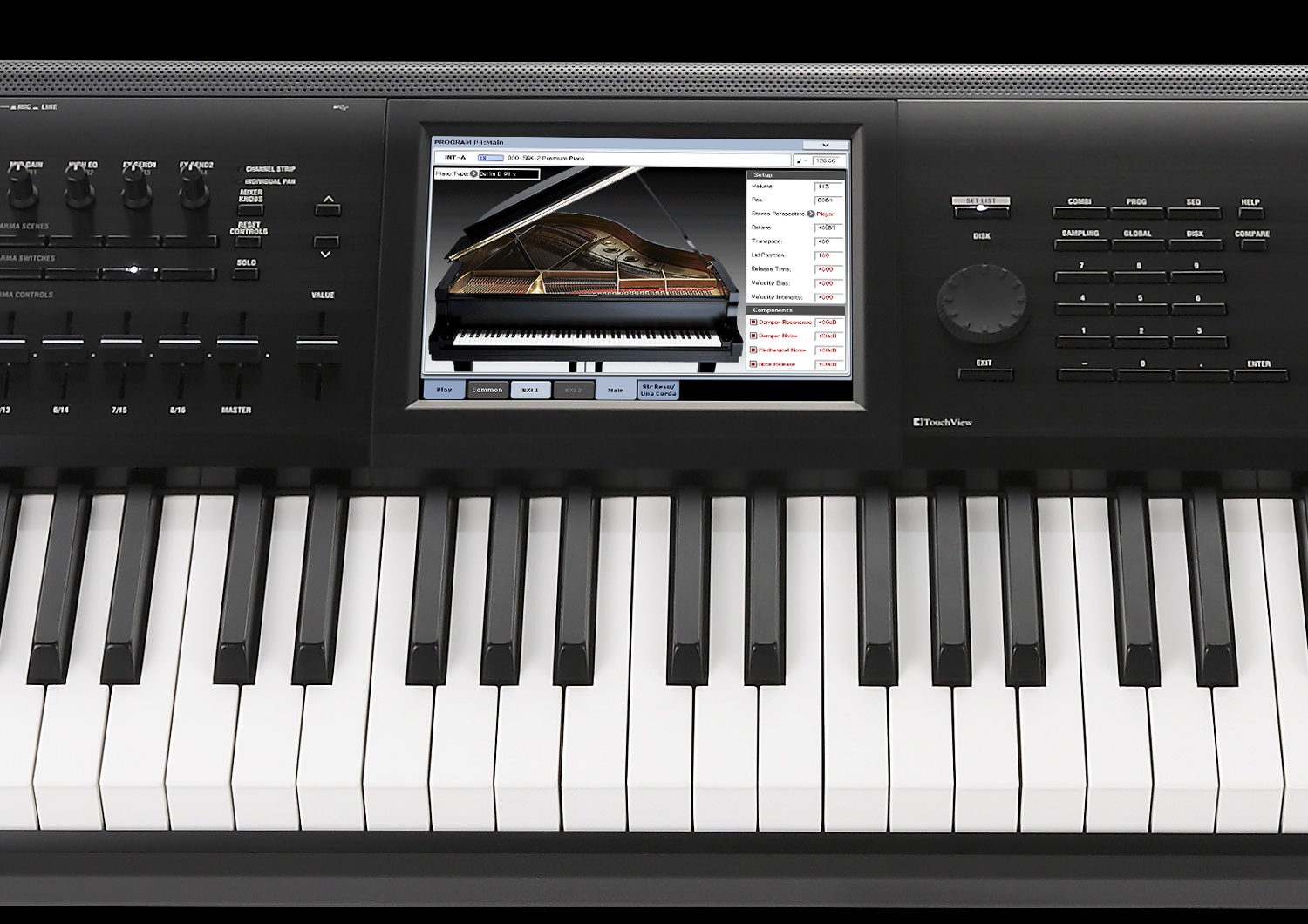

Display - TouchView graphical user interface, 8 inch color TFT, SVGA (800x600 dots), adjustable brightness
Outputs== Analog ==
(MAIN) L/MONO, R:
1/4” TRS Balanced
Output Impedance: 350 Ω Stereo; 175 Ω Mono (L/MONO Only),
Nominal Level: +4.0 dBu,
Maximum Level: +16.0 dBu (when load impedance is 600 Ω or greater)
MAIN VOLUME knob controls only AUDIO OUTPUT (MAIN) L/MONO and R
Individual 1-4:
1/4” TRS Balanced
Output Impedance: 350 Ω Stereo; 175 Ω Mono,
Nominal Level: +4.0 dBu,
Maximum Level: +16.0 dBu (when load impedance is 600 Ω or greater)
Headphones:
1/4” stereo phone jack, Output impedance: 33 Ω, Maximum Level: 60+60 mW (when load impedance is 33 Ω),
MAIN VOLUME knob (link with AUDIO OUTPUT (MAIN))
== Digital ==
S/P DIF:
Optical, 24-bit, IEC60958, EIAJCP-1201, Sample Rate: 48 kHz, (the same signals as L/MONO, R)
Digital output of the same signals as AUDIO OUTPUT (MAIN) L/MONO and R
USB-B:
24-bit, Sample Rate: 48 kHz, 2 channels
(Digital output of the same signals as AUDIO OUTPUT (MAIN) L/MONO and R)
Inputs== Analog ==
Audio Inputs 1 and 2:
1/4” TRS Balanced
MIC/LINE input level switches, LEVEL knobs
Input Impedance: 10 kΩ
Nominal Level: LINE
+4 dBu (LEVEL knob = min), –36 dBu (LEVEL knob = max)
Nominal Level: MIC
–22 dBu (LEVEL knob = min), –62 dBu (LEVEL knob = max)
Maximum Level: LINE
+16 dBu (LEVEL knob = min), –24 dBu (LEVEL knob = max)
Maximum Level: MIC
-10 dBu (LEVEL knob = min), –50 dBu (LEVEL knob = max)
Source Impedance: 600 Ω
Signal to noise ratio: 95 dB (typical)
Dynamic range: 95 dB (typical)
Crosstalk: 95 dB, at 1 kHz (typical)
== Digital ==
S/P DIF:
Optical, 24-bit, IEC60958, EIAJCP-1201, Sample Rate: 48 kHz
USB-B:
24-bit, Sample Rate: 48 kHz, 2 channels
Control Inputs - Damper pedal (half damper supported), assignable switch, assignable pedal
MIDI - In, Out, Thru
USB*5 - USB A (TYPE A) x 2, For connection to external USB devices (QWERTY keyboards, MIDI controllers, ethernet adaptors, and storage)
USB B (TYPE B) x 1, MIDI/audio interface
MIDI: 1 (16 channel) input / 1 (16 channel) output
Audio: 2 channel input / 2 channel output
*5 USB high-speed ports (supports 480Mbps)
Disk Drives 60 GB SSD (2.5”)
Optional installation of second internal SSD
Power Consumption - 60W
Dimensions
(W x D x H) - 61 key: 1,040 x 364 x 134 mm / 40.94” x 14.33” x 5.28”
Weight 61 key:
14.3 kg / 31.53 lbs.
Accessories - AC cord, Quick Start Guide, Accessory DVD Discs 1-3 (DVDs include KRONOS Operation Guide, Parameter Guide, and Voice Name List PDF files; Video Manual; KORG USB-MIDI Driver; System Restore Data, etc.)
