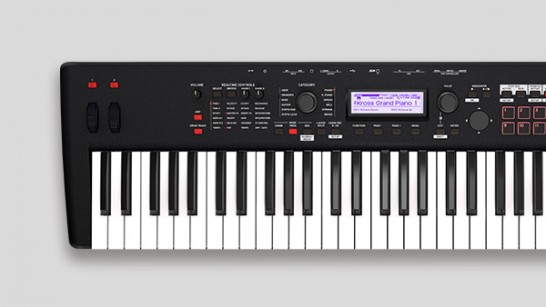

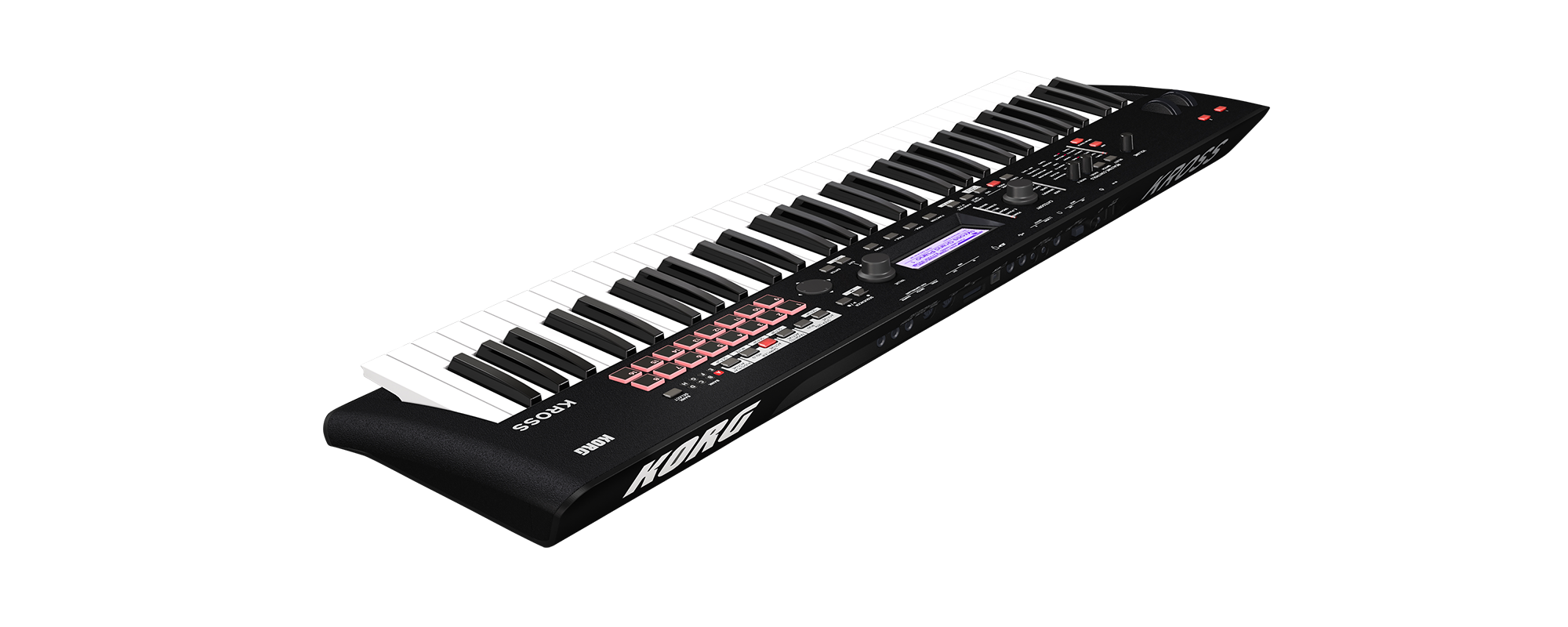

KROSS 2-61
61 keys (velocity sensitive; aftertouch not supported)
Normally C2–C7(adjustable in the range [C1…C6]–[C3…C8]
System
EDS-i（Enhanced Definition Synthesis - integrated）
Sound Engine
Maximum Polyphony 120 voices (120 oscillators), single mode
60 voices (60 oscillators), single mode
* The actual maximum polyphony will vary depending on oscillator settings such as stereo multisamples and velocity crossfading. Preset PCM Memory Approximately 128 MB (calculated as 48 kHz / 16-bit linear PCM data equivalent)
496 multisamples (including seven stereo), 1014 drumsamples (including 49 stereo) Expansion PCM Memory Approximately 128MB (*when converted to 48 kHz 16-bit linear PCM
* Used when loading option PCM
Program
Oscillator - OSC1 (Single), OSC1+2 (Double): Stereo multisamples are supported 4 velocity zones per oscillator, with switching, crossfades and layers.
Filters - Four types of filter routing (single, serial, parallel, 24 dB)
Two multi-mode filters per voice (low pass, high pass, band pass, band reject)
Modulation - For each voice, two envelope generators (Filter & Amp), two LFOs, two key tracking generators (Filter & Amp), and two AMS mixers. In addition, pitch EG, common LFO, and two common key tracking generators
Combination
Timbres - Up to 16 timbres, switchable via key zone or velocity zone, layer and crossfade supported, Tone Adjust function allows program settings to be offset
Master Keyboard functionality - These allow you to control external MIDI devices
Drumkits - Stereo and mono drumsamples. 4-way velocity switches with crossfades and adjustable crossfade shapes (Linear, Power, Layer).
The Number of Combinations/Programs/Drum Kits
User Combinations - 896 Combinations (384 Preload)
User Programs - 1280 Programs (768 Preload)
User Drum Kits - 58 Drum Kits (42 Preload)
Preset Programs - 265 Programs (256 GM2 Programs + 9 GM2 Drum Programs)
Favorites
Number of memories - 128 (16 favorites × 8 banks)
Effects
Insert effects - 5 Insert Effects In-line processing; stereo in - stereo out.
Master effects - 2 Master Effects Two effects sends; stereo in - stereo out.
Effects types - Total of 134 types (select from 74 types for insert effects, 101 types of master effect 1, and 120 types for master effect 2)
Modulation - Dynamic Modulation
Effects Control Bus - Stereo side-chaining for limiter, gates, vocoders, etc.
Polyphonic arpeggiators
Program mode - One arpeggiator
Combination mode - Two arpeggiators
Sequencer modes - Two arpeggiators
Preset arpeggio patterns - UP, DOWN, ALT1, ALT2, RANDOM
User arpeggio patterns - Number of arpeggio patterns: 1280 (1024 preload)
Number of tones: 12 tones,
Number of steps: up to 64 steps
Step sequencer
Program mode
Combination mode
Sequencer mode - One unit
Number of tones: 12 tones + 1 accent tone
Number of steps: up to 64 steps
* Can be created for each program, combination, and song.
Drum Track
Preset Patterns - 772 patterns (Held in common with sequencer patterns.)
Other - Trigger Mode / Sync / Zone settings can be specified
Sequencer
Tracks - 16MIDI Tracks
Number of Songs - Up to 128 songs
Resolution - 1/480
Tempo - 40.00–300.00 (1/100 BPM resolution)
Maximum Memory - Up to 210,000 MIDI events
Counter - Measure/Beat/Tick
Template Song - 16 preset/16 user template songs
Preset Patterns - 772 patterns (shared with Drum Track patterns)
Format - KORG (KROSS) format, SMF format 0 and 1
Pad sampler
Specifications - 16 pads × 8 banks
Automatically saved on the SD card, and automatically loaded
Up to four pads can play simultaneously
Recording format - PCM audio format 48 kHz/16-bit
Recording time - Up to approximately 14 seconds of stereo sample for each pad
Import - WAVE format, file name extension: .wav, 44.1 kHz/16-bit, 48 kHz/16-bit, stereo
* 44.1 kHz is automatically converted to 48 kHz/i>
Edit - Waveform display editing functionality, start address and looping settings etc., normalize and other editing operations
Audio Recorder
Recording Format - PCM audio format 48kHz/16bit
Import - WAVE format (file name extension: wav ) 44.1kHz/16bit, 48kHz/16bit stereo
* 44.1 kHz is automatically converted to 48 kHz/i>
Export - WAVE format (file name extension: .wav) 48kHz/16bit, stereo
Recording Time - Maximum continuous recording time: 3 hours
Depends on the SD card used; approximately 90 minutes per 1 GB
Number of Songs - Up to 200 songs
Number of overdub recordings - Depends on the remaining capacity of the SD card
Counter Hour/Min/Sec
Pad audio play - 16 pads × 8 banks
Directly play back data from SD card
Multiple pads cannot be played simultaneously
Media
File, Utility, Information, additional PCM data management functionality
Controllers
General Control - Pitch bend wheel, Modulation wheel, SW1, SW2

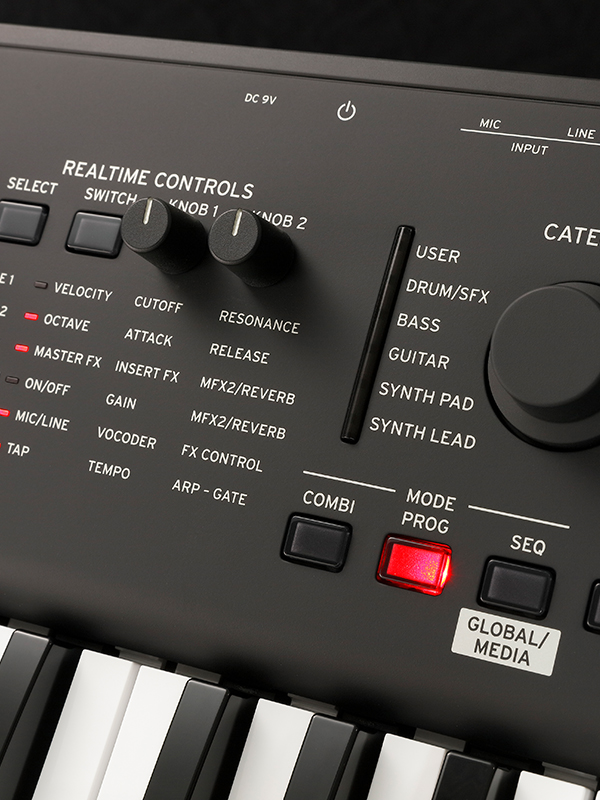

Realtime Control - SELECT button, SWITCH button, KNOB1 knob, KNOB2 knob
Step Sequencer/Favorite/Pad Sampler/Pad Audio Play

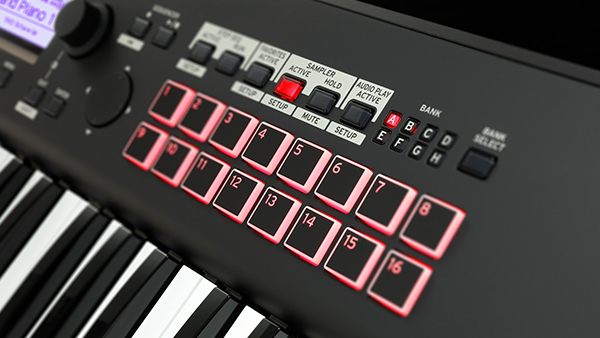

Pads 1–16
STEP SEQ ACTIVE button, Run button
FAVORITES ACTIVE button
SAMPLER ACTIVE button, HOLD button
AUDIO PLAY ACTIVE button
BANK LEDA/B/C/D/E/F/G/H (also used by Step sequencer, Favorite, Pad Sampler, and Pad Audio Play)
Drum Track - DRUM TRACK button
Arpeggiator - ARP button
Audio Recorder - AUDIO REC button
User Interface

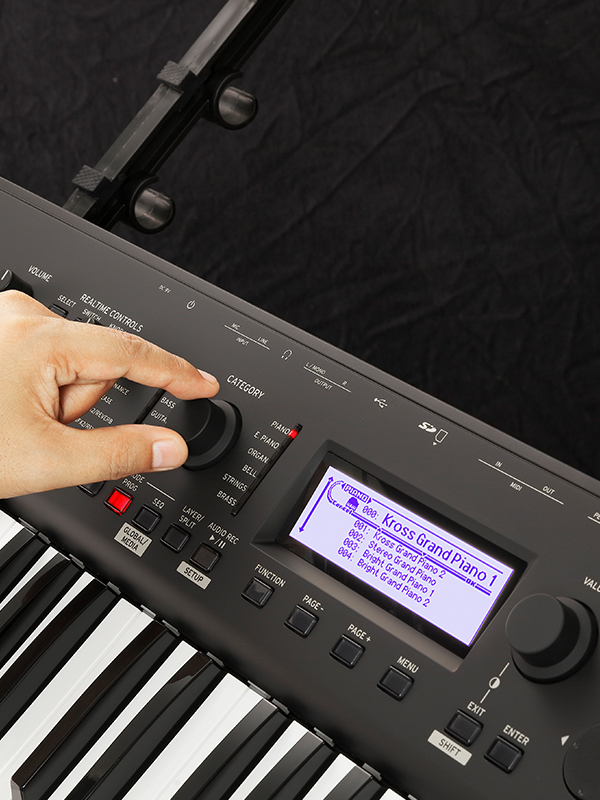

Display - 240 × 64 pixel LCD backlight
Adjustable contrast (hold the EXIT button and turn the VALUE dial) Category CATEGORY dial, VALUE dial
MODE - COMBI button, PROG button, SEQ (GLOBAL/MEDIA) button
Value Controllers - Cursor buttons, EXIT,ENTER, FUNCTION, PAGE-, PAGE+, MENU buttons
Sequencer - REC button, START/STOP button
Quick Layer Split - LAYER/SPLIT button
Other - VOLUME knob
Control Input
DAMPER (Supports piano-style half-damper pedals as well as standard foot switches)
ASSIGNABLE SWITCH
ASSIGNABLE PEDAL

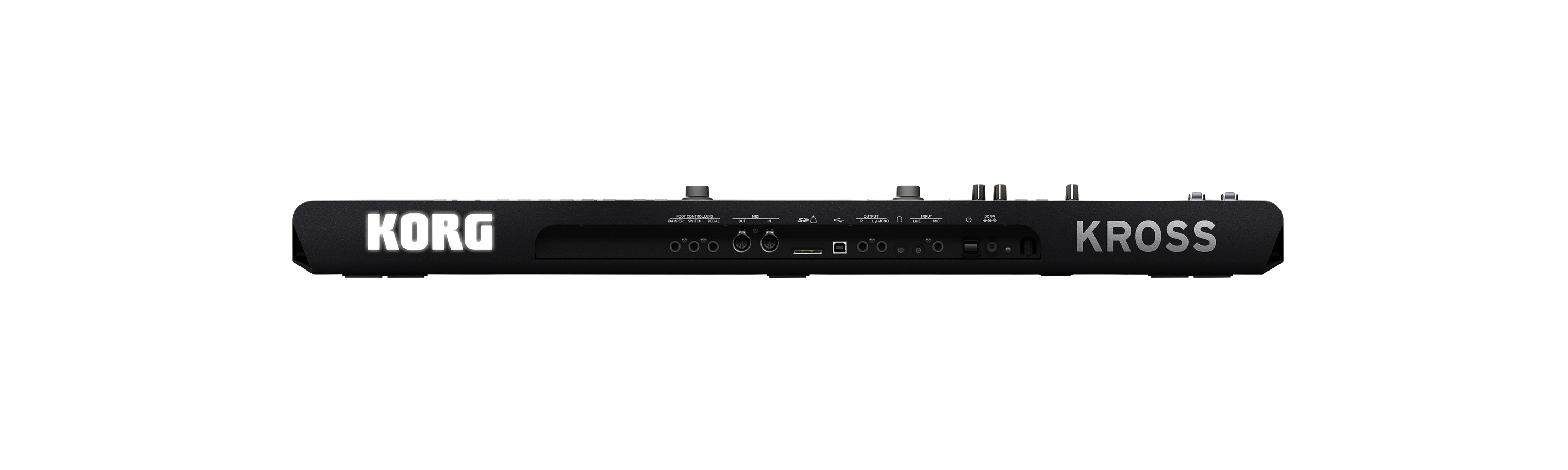

Audio Outputs (Analog)
AUDIO OUTPUT L/MONO, R - Connectors: 6.3 mm (1/4") phone jacks(TS unbalanced)
Output Impedance: 1.1k ohm stereo, 550 ohm mono (L/Mono only)
Maximum Level: +10.0 dBu
Load Impedance: 10k ohm or greater
Controllable by the VOLUME knob
HEADPHONE OUTPUT - Connectors: 3.5mm (1/8") stereo mini phone jack
Output Impedance: 33 ohnm
Maximum Level: 40 + 40 mW
Controllable by the VOLUME knob
Audio Inputs (Analog)
LINE IN - Connectors: 3.5 mm (1/8") stereo mini phone jack
Input Impedance: 1.1k ohm
Maximum Input Level: -42 to 0 dBu
MIC IN - Connectors: 6.3 mm (1/4") phone jacks(TS unbalanced)
Input Impedance: 33 ohm
Maximum Input Level: -48 to -6dBu
Phantom power or plug-in power is not supported.
Others
MIDI - IN, OUT
USB - USB connector TYPE B x 1, USB-MIDI interface, USB audio interface
SD Card Slot - One card slat
* Capacity recognized: SD memory cards up to 2 Gigabytes (GB). SDHC memory cards up to 32 Gigabytes (GB). SDXC memory cards are not supported.
Main Specifications
Power - AC adaptor power supply DC 9V
AA alkaline batteries x 6, or nickel-metal hydride batteries x 6
Battery Life - AA alkaline batteries x 6: Approximately 6 hours
AA nickel-metal hydride batteries (1900mAh) x 6: Approximately 7 hours
* Varies depending on the batteries used and the conditions of use.
Power Consumption - 5 W
Dimensions (W x D x H) - KROSS2-61: 935 mm × 269 mm x 88 mm / 36.81" × 10.59" × 3.46"
Weight KROSS2-61: 3.8 kg / 8.38 lbs (excluding batteries)
