- 1/2” condenser capsule with remote preamp
- Gold sputtered externally biased condenser
- Two position PAD - 0dB and -10dB
- Two position High Pass Filter - flat and 80Hz

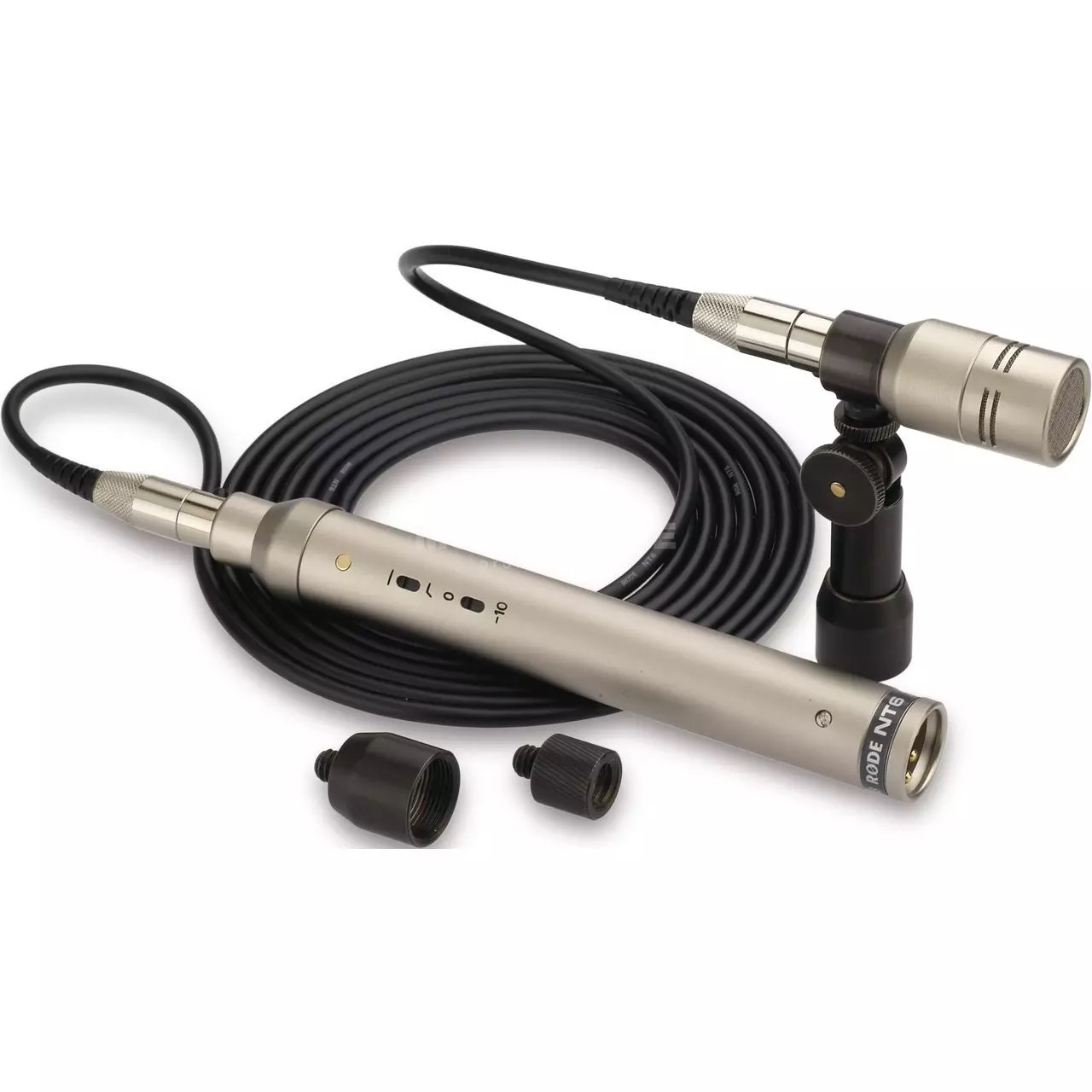

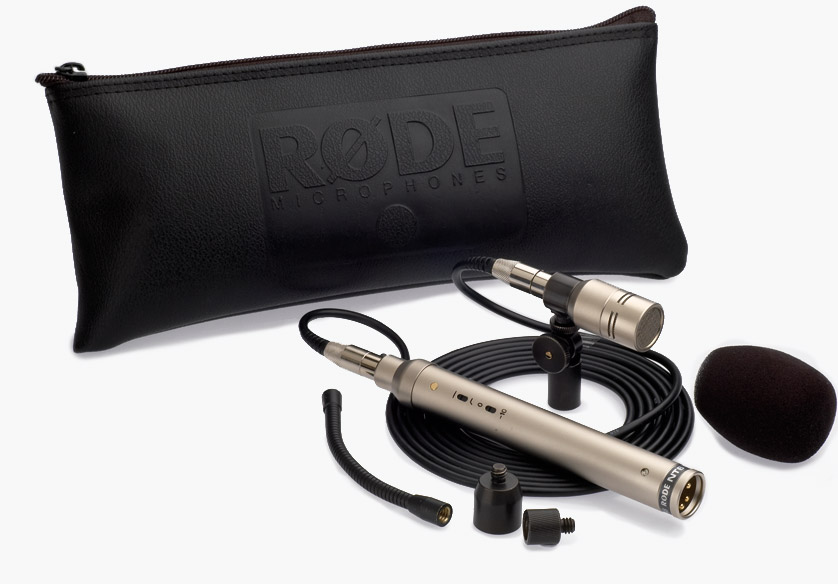

- Includes two-axis swivel mount, 3m Kevlar® fibre reinforced cable, windshield and zip pouch
- Heavy duty satin-nickel plated body
- Low noise and full frequency response
- Designed and manufactured in Australia
Acoustic Principle
Pressure Gradient
Active Electronics
JFET impedance converter with bipolar output buffer
Capsule
0.50"
Polar Pattern
Address Type
End
Frequency Range
40Hz - 20kHz
Output Impedance
200Ω
Maximum SPL
135dBSPL
Maximum Output Level
6.0mV (@ 1kHz, 1% THD into 1KΩ load)
Sensitivity
-37.0dB re 1 Volt/Pascal (16.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-weighted)
19dBA
Power Options
Weight
386.00g
Dimensions
189.00mmH x 64.00mmW x 20.00mmD
Output
